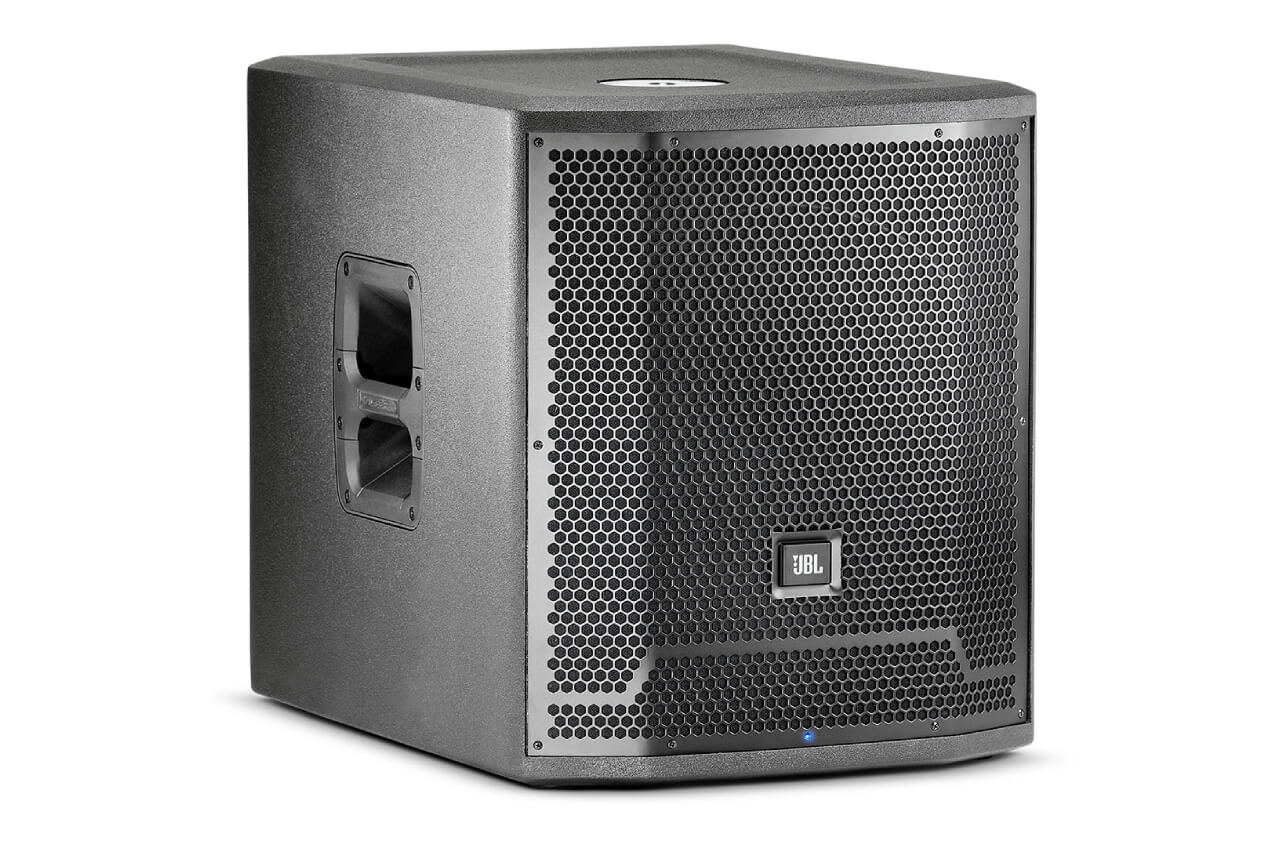

JBL PRX715XLF 15" Self-Powered Extended Low Freq Subwoofer Sys (Pair)

PRX715XLF

15" Self-Powered Extended Low Frequency Subwoofer System

The PRX715XLF, extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX715XLF performs with extreme efficiency and control.

Features:

• 136 dB peak SPL
• 15" Differential Drive® low-frequency driver for low-distortion and higher SPL
• 1.5" diameter next generation JBL neodymium compression driver
• JBL designed waveguide for accurate coverage
• Efficient Class-D amplifier technology
• Optimized EQ for monitor or front-of- house applications
• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
• Line level and direct microphone input capability
• Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
• Multi-angle enclosure for main PA or floor monitor applications
• Integrated 36 mm pole mount socket with angle down tilt
• Injection molded handle with backing cup for easy transport
• Integrated M10 suspension points for easy setup
• Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and  protected by JBL’s tour proven DuraFlex™finish.

• Cloth backed, dent-resistant 16 gauge steel grilles



Application

• The PRX715XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX715XLF performs with exceptional efficiency and control. The subs are stackable and lightweight ensuring quick set-ups and teardowns. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.

---

• The PRX715XLF is a high performance self-powered subwoofer system. The PRX715XLF is comprised of a powerful 2275H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.

---

• All PRX700 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.

---

• The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
