RG320EXZ-BKF (Black Flat)
Ibanez Electric Guitar - RG Series

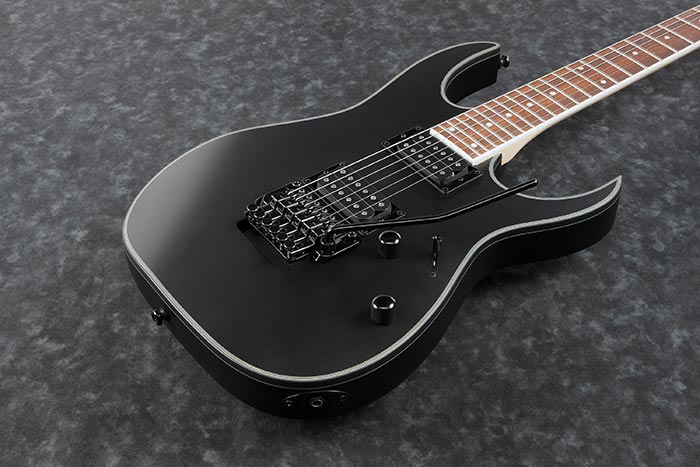

The RG320EXZ features a Meranti body bolted to a maple Wizard III neck with a 24-fret jatoba fingerboard with white binding and white dot position markers. Components include a pair of Ibanez Quantum humbucking pickups mounted in pickup rings, an Edge Zero II double locking tremolo bridge with a removable ZPS3Fe tuning stabilizer, a locking nut, and Ibanez die-cast tuning machines.
Edge-Zero II tremolo bridge w/ZPS3Fe
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning. In addition, the zero-point system provides much greater tuning stability
Wizard III Maple neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.
|Neck Type:||Wizard III / Maple neck|
|Fretboard:||Jatoba fretboard / White dot inlay|
|Number of Fret:||24|
|Bridge:||Edge-Zero II w/ZPS3Fe bridge|
|Neck Pickup:||Quantum (H) neck pickup (Passive/Ceramic)|
|Bridge Pickup:||Quantum (H) bridge pickup (Passive/Ceramic)|
|Strings:||D Addario® EXL120|
|a: Width:||43mm at NUT|
|b: Width:||58mm at 24F|
|c: Thickness:||19mm at 1F|
|d: Thickness:||21mm at 12F|
|DESCRIPTION Guitar Neck Diagram|
|a: Width of the neck at the nut|
|b: Width of the neck at the first fret|
|c: Thickness of the neck at the first fret|
|d: Thickness of the neck at the twelfth fret|
|Radius: Radius of the fingerboard|
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
