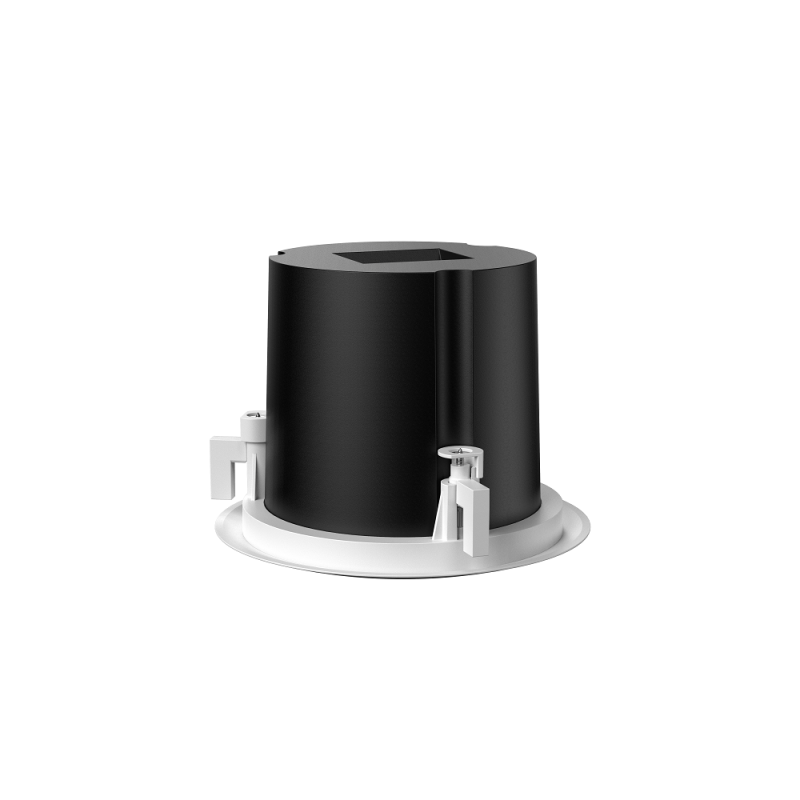

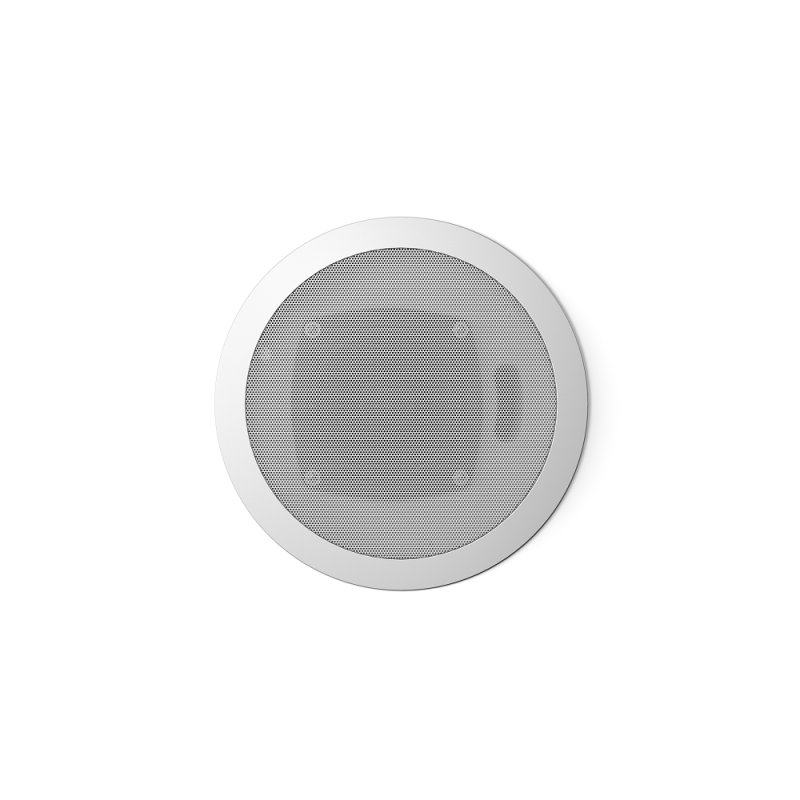

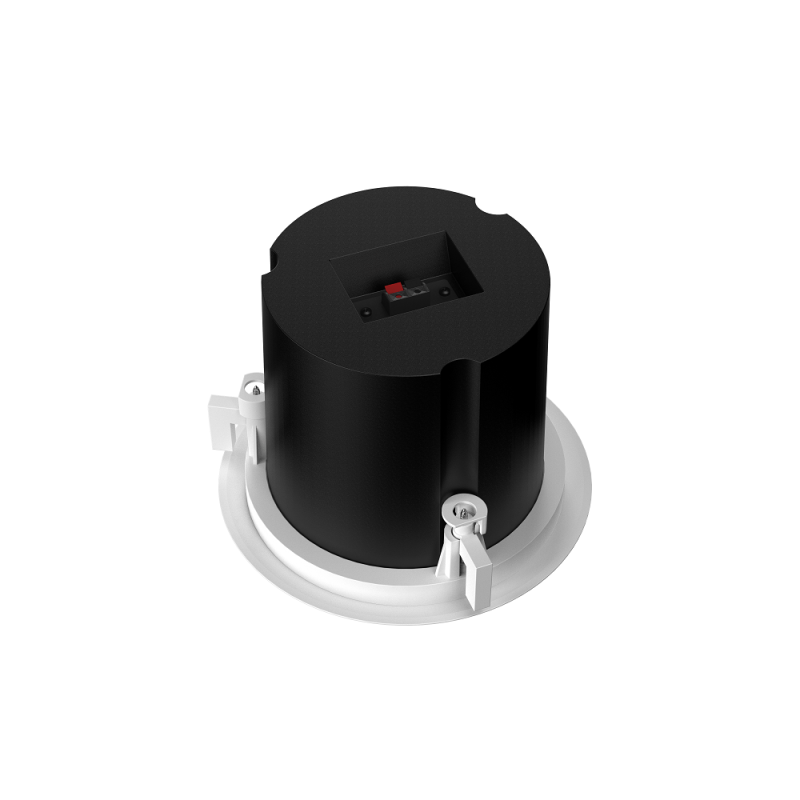

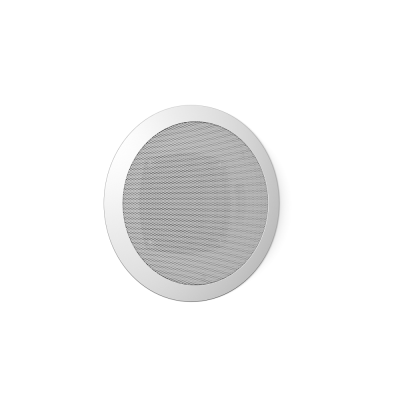

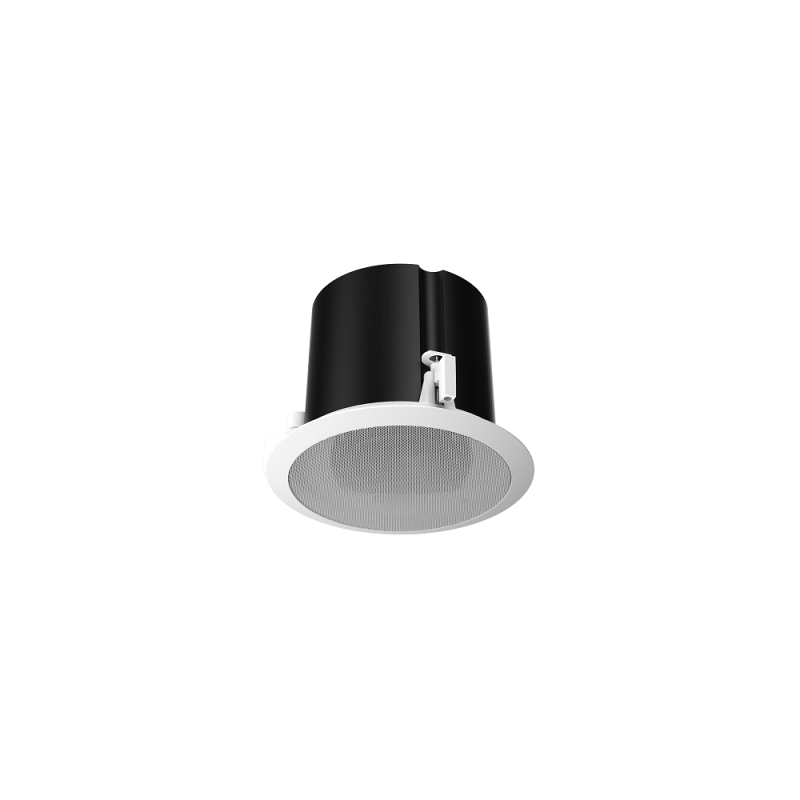

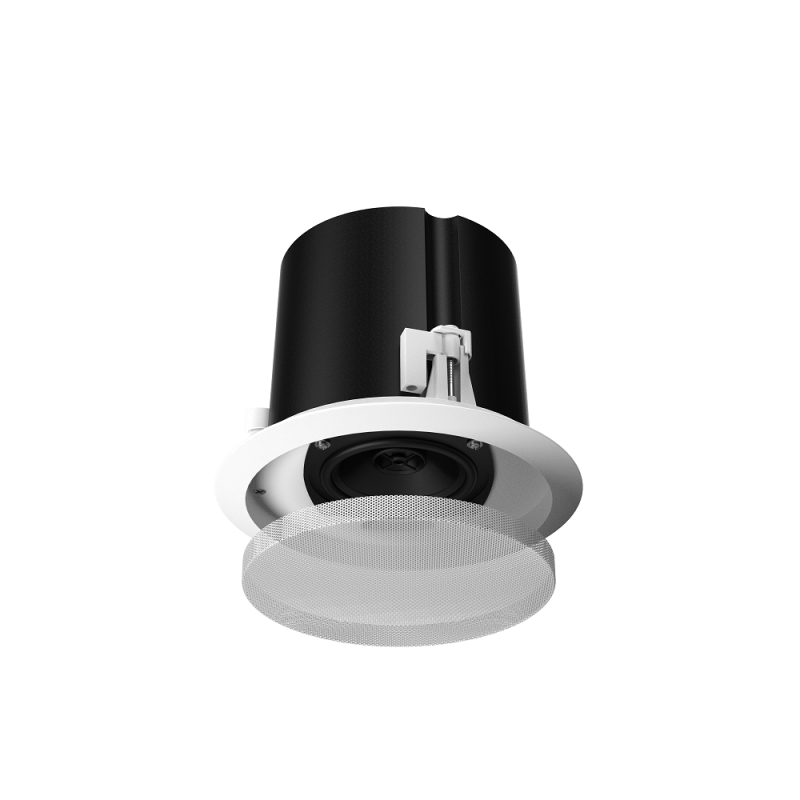

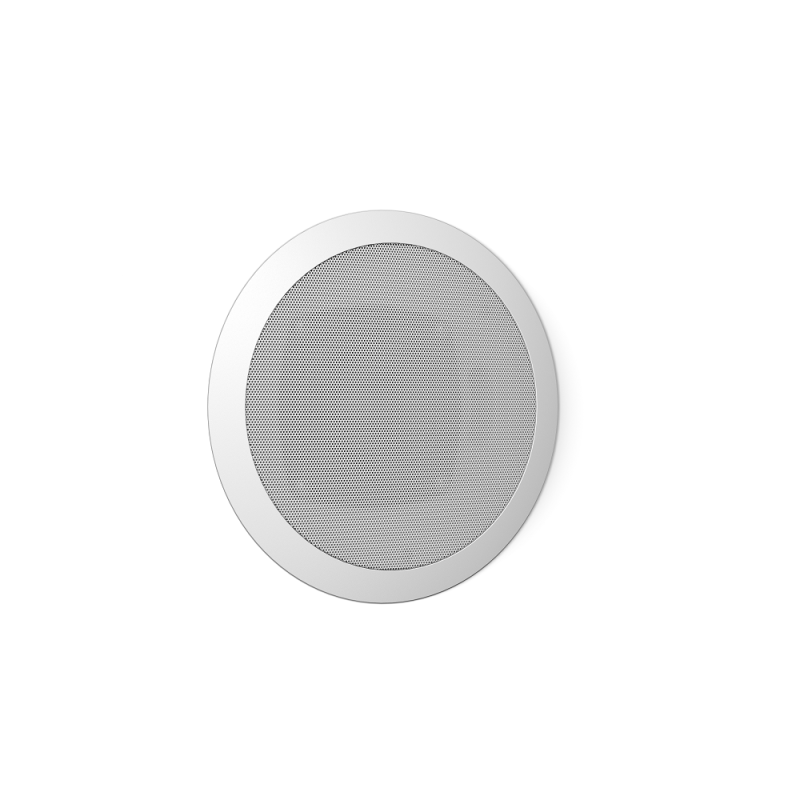

HH ELECTRONICS TNi-C4 Ceiling Speaker

The Tessen TNi-C4 delivers premium audio reinforcement. Designed with the installer in mind, The TNi-C4 – 4 inch coaxial ceiling speaker - features a 6 position power tap selector located under the front steel grille, providing swift output adjustment once installed.

With connectivity for 70V/100V and 8 ohm low impedance lines, The TNi-C4 delivers a highly flexible solution. The spring connection terminals ensure cables are secure once fitted.

The HH TNi-C4-WH is a compact passive two-way bass-reflex ceiling loudspeaker with an integrated back can, 4-inch paper woofer and 1.5-inch neodymium tweeter. Its front-facing selector provides 30 W, 15 W and 6 W taps for 100 V lines, 15 W, 7.5 W and 3 W taps for 70 V systems, or direct 8-ohm operation rated at 45 W AES.

Designed for restricted mounting areas, the speaker uses a white ABS surround and circular mesh steel grille for a clean ceiling finish. Spring terminals and three locking dog-ear brackets assist secure connection and mounting, while the power selector remains accessible after installation.

Key Features

• 100 Hz to 16 kHz response at -3 dB supports balanced speech and music reproduction
• Calculated maximum SPL of 111 dB provides useful headroom for compact ceiling audio
• Wide 130° conical coverage helps distribute sound across a broad listening area
• Low 1.4 kg unit weight supports practical handling during overhead installation
• Installation grip range of 4-20 mm accommodates varied ceiling panel thicknesses
