REAN RTP3C 3.5mm Stereo TRS audio connector Plug - 50pcs. /Pack Features & Benefits Ergonomic space savin
- Brand: REAN
- Product Code: REAN RTP3C 50PCS
- Availability: In Stock
-
The item is available for purchase.

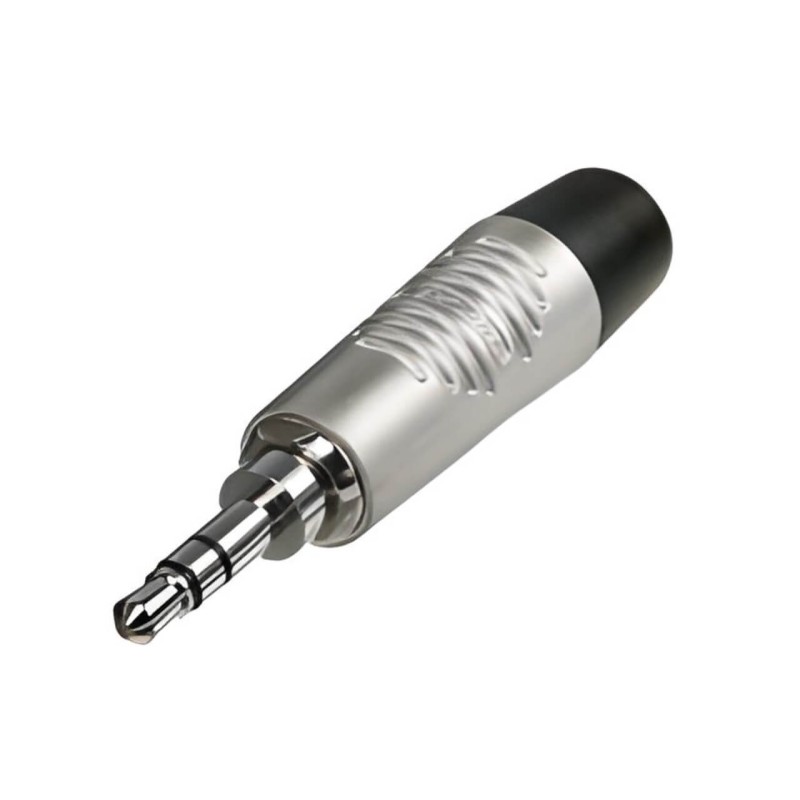

REAN RTP3C 3.5mm Stereo TRS audio connector Plug - 50pcs. /Pack
Features & Benefits
- Ergonomic space saving design
- Full metal rugged shell, reliable quality
- Easy to assemble and use
- Optional mono 2 pole and stereo 3 pole
- Precision machined one piece contacts – no rivets
Technical Information
| + Product | |
|---|---|
| Title | RTP3C |
| Connection Type | Plug |
| + Electrical | |
|---|---|
| Contact Resistance | 10 mΩ |
| Insulation Resistance | >200 mΩ (Initial) |
| Dielectric Strength | 500V dc 50HZ |
| + Mechanical | |
|---|---|
| Insertion and Withdrawal Force | ≤ 60 N |
| Lifetime | >1,000 Mating Cycles |
| Cable O.D. | 2 - 4 mm |
| Wiresize | 0.24 mm² |
| Wiresize | 24 AWG |
| + Material | |
|---|---|
| Sleeve Assembly | Brass |
| Sleeve | Brass |
| Housing | Zinc |
| Sleeve Assembly | Nickel Plating |
| Sleeve | Nickel Plating |
| Housing | Nickel Plating |
