₱7,500.00
100pcs./Pack - Rean - RC3M Male 3-Pin XLR Connector , nickel plated housing, silver plated contacts Features & BenefitsErgonomic design, easy to useRugged Zinc diecast housing, long life
- Brand: REAN
- Product Code: REAN RC3M 100PCS
- Availability: 2-3 Days

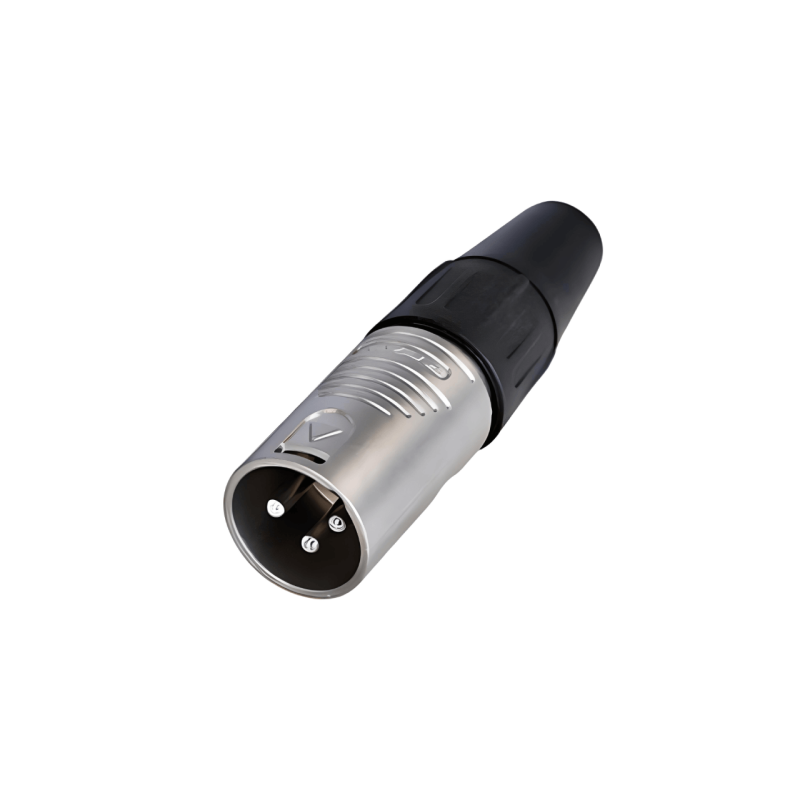

100pcs./Pack - Rean - RC3M Male 3-Pin XLR Connector , nickel plated housing, silver plated contacts
Features & Benefits
- Ergonomic design, easy to use
- Rugged Zinc diecast housing, long lifetime
- Chuck type strain relief provides the best cable retention, easy to assembly
- Provide rotatable angle of right-angle products
- Rubber boot ensure the best protection of the cable
- Rugged latch locking system, provides secure connection
| + Product | |
|---|---|
| Title: | RC3M |
| Connection Type: | XLR |
| Gender: | male |
| + Electrical | |
|---|---|
| Insulation resistance: | > 1.5 GΩ |
| Contact resistance: | ≤ 5 mΩ |
| Rated Current: | 10 A |
| + Mechanical | |
|---|---|
| Lifetime: | > 1,000 Mating Cycles |
| Insertion / Withdrawal Force: | ≤ 30 N / ≤ 20 N |
| Cable O.D.: | 4 - 7 mm |
| Wiresize: | 1.5 mm² |
| Wiresize: | 16 AWG |
| + Material | |
|---|---|
| Pin: | Brass |
| Male Insert: | PA6+30%GF UL94-HB |
| Ground Contact: | Bronze |
| Housing: | Zinc |
| Chuck: | POM |
| Push Ring: | POM |
| Bushing: | PA6+30%GF |
| Boot: | PVC |
| Pin: | Sliver Plating |
| Ground Contact: | Tin and Cer |
| Housing: | Nickel Plating |
