₱320.00
4 pole cable connector, chuck type strain relief, dark grey bushing The industry standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contact
- Brand: Neutrik
- Product Code: NL4FX
- Availability: In Stock
-
The item is available for purchase.

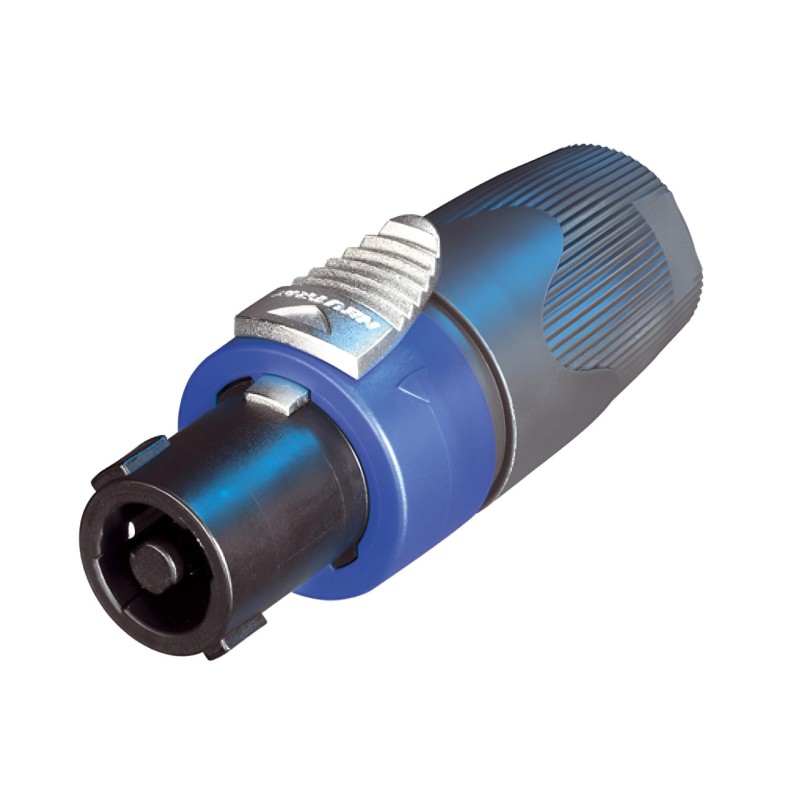

4 pole cable connector, chuck type strain relief, dark grey bushing
The industry standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features
- Current rating 40 A rms continuous
- Up to 50 A audio signal, duty cycle 50%
- Only 3 parts, easy to assemble
- High-impact materials - long-lasting and reliable
- Easy and extremely precise locking system "Quick Lock"
- Improved grip on latch
- 1 piece strain relief, chuck for 7 to 14.5 mm cable O.D.
- Color coding possible
- Improved screw-type termination for highest pull-out force
- Integrated design guarantees "Made by Neutrik®"
| + Product | |
|---|---|
| Title: | NL4FX |
| Connection Type: | speakON |
| Gender: | Female |
| + Electrical | |
|---|---|
| Contact Resistance: | < 2 m Ω (after lifetime) |
| Dielectric strength: | 4 kVdc (peak) |
| Insulation resistance: | > 1 G Ω (after dampheat) |
| Rated current per contact: | 40 A rms continuous |
| Rated current per contact: | 50 A audiosignal, duty cycle 50 % |
| Rated voltage: | 250 V (Insulation) |
| Attention: | speakON is NOT to be used as an AC mains or power supply connector! |
| + Mechanical | |
|---|---|
| Cable O.D: | 7 - 14.5 mm |
| Cable retention: | ≥ 220 N (subject to cable O.D. and material) |
| Lifetime: | > 5000 mating cycles |
| Wiresize: | 4 mm² / 6 mm ² (screw type terminals/soldering) |
| Wiresize: | 12 AWG / 10 AWG |
| Wiring: | screw type terminals or soldering |
| Locking device: | Quick Lock (latch) |
| + Material | |
|---|---|
| Contact plating: | 4 µm Ag |
| Contacts: | Brass (CuZn39Pb3) |
| Insert: | PBTP 20 % GR |
| Locking element: | Zinc diecast (ZnAl4Cu1) |
| Shell: | PBTP 20 % GR |
| Strain relief: | Polyacetal (POM) |
| + Environmental | |
|---|---|
| Flammability: | UL 94 HB |
| Solderability: | Complies with IEC 68-2-20 |
| Temperature range: | -30 °C to +80 °C |
