₱21,340.00
100pcs. 1/4" professional phone plug, 2 pole, nickel contacts, nickel shell The heavy-duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with un
- Brand: Neutrik
- Product Code: NP2X
- Availability: Out Of Stock
-
The item is currently unavailable.

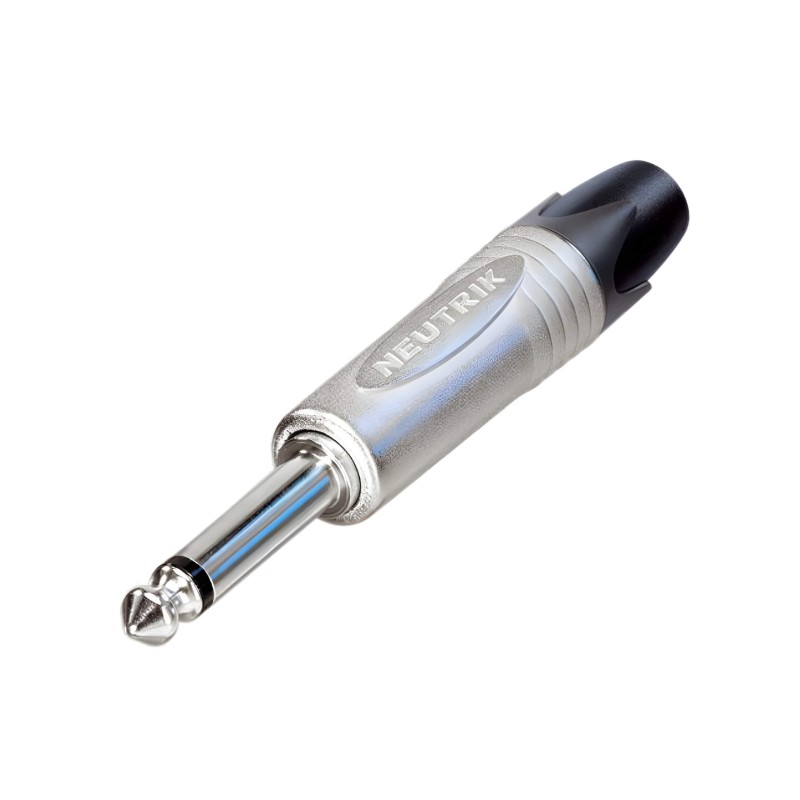

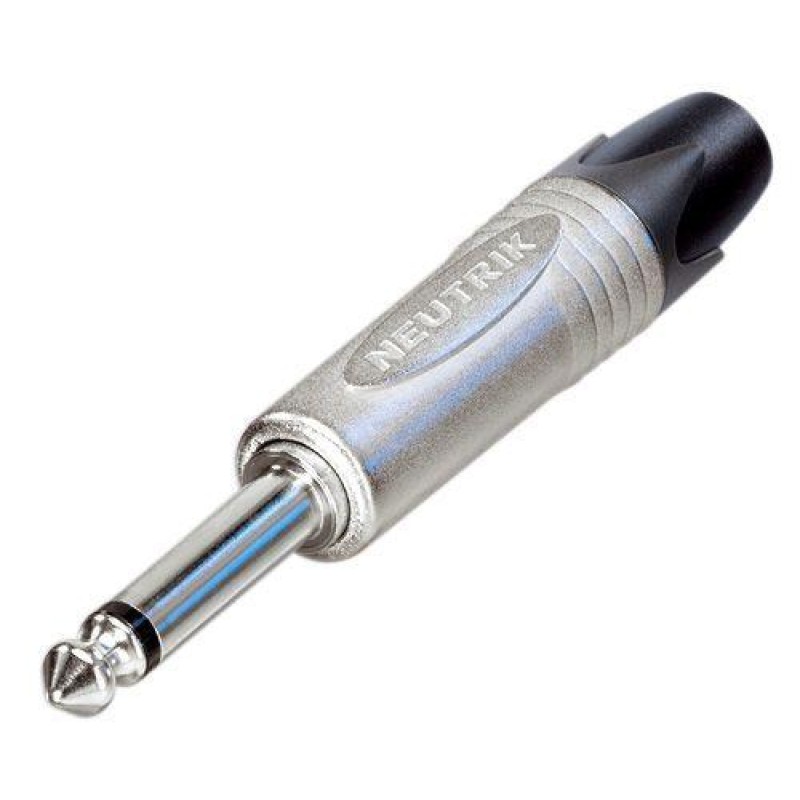

100pcs. 1/4" professional phone plug, 2 pole, nickel contacts, nickel shell
The heavy-duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
Features
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook-up of tip contact
| + Product | |
|---|---|
| Title: | NP2X |
| Connection Type: | Plug |
| Gender: | Male |
| + Electrical | |
|---|---|
| Contact Resistance: | depends on mating connector mΩ |
| Dielectric strength: | 1 kVdc |
| Insulation resistance: | > 2 (initial) GΩ ≥ 1 GΩ (after damp heat test) |
| Rated current per contact: | depends on mating connector A |
| Rated voltage: | < 50 V |
| + Mechanical | |
|---|---|
| Cable O.D: | 4 - 7 mm |
| Lifetime: | > 1000 mating cycles |
| Wiresize: | 1 mm |
| Wiresize: | 18 AWG |
| Wiring: | Solder contacts |
| + Material | |
|---|---|
| Bushing: | Polyacetal (POM) + PU |
| Contact plating: | 2 µm Ni (Su) |
| Contacts: | Brass (CuZn39Pb3) |
| Insert: | Polyamide (PA 6.6 30 % GR) |
| Shell: | Zinc diecast (ZnAl4Cu1) |
| Shell Plating: | Nickel |
| Shell Relief: | Polyacetal (POM) |
| + Environmental | |
|---|---|
| Standard compliance: | IEC 60603-11 / EIA RS-453 |
| Solderability: | Complies with IEC 68-2-20 |
| Temperature range: | -20 °C to +65 °C |
