₱960.00
4 pole speakON loudspeaker cable connector with latch lock, chuck and bushing. The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. RLS4FC features solid
- Brand: Neutrik
- Product Code: RLS4FC 4PC/PCK
- Availability: In Stock
-
The item is available for purchase.

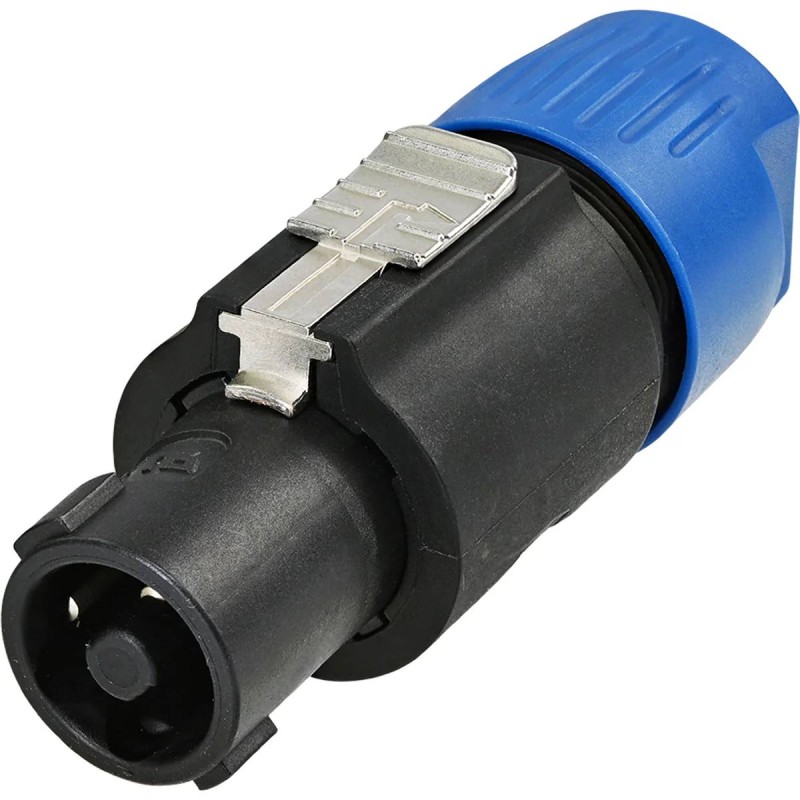

4 pole speakON loudspeaker cable connector with latch lock, chuck and bushing.
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. RLS4FC features solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features & Benefits
- Using fiberglass material, rugged insert and shell
- Solid keyway, reliable and suitable
- Robust lock system, safe locking
- Chuck type strain relief, maximum cable capacity, quick and convenient installation
- Sealed design, technology model in the speaker connector application field
Technical Information
| + Product | |
|---|---|
| Title: | RLS4FC |
| Connection Type: | Loudspeaker Connectors |
| + Electrical | |
|---|---|
| Contact resistance: | ≤ 5 mΩ (after lifetime) |
| Dielectric strength: | 4 kVdc (peak) |
| Insulation resistance: | > 1 GΩ (after dampheat test) |
| Rated current per contact: | 30 A |
| Rated voltage: | 250 V (insulation) |
| Attention: | Shall NOT be used as an AC mains connector! |
| + Mechanical | |
|---|---|
| Cable O.D.: | 6 - 10 mm |
| Lifetime: | > 1000 mating cycles |
| Wiresize: | 4 mm² |
| Wiresize: | 12 AWG |
| + Environmental | |
| Temperature range: | -30 °C to +80 °C |
