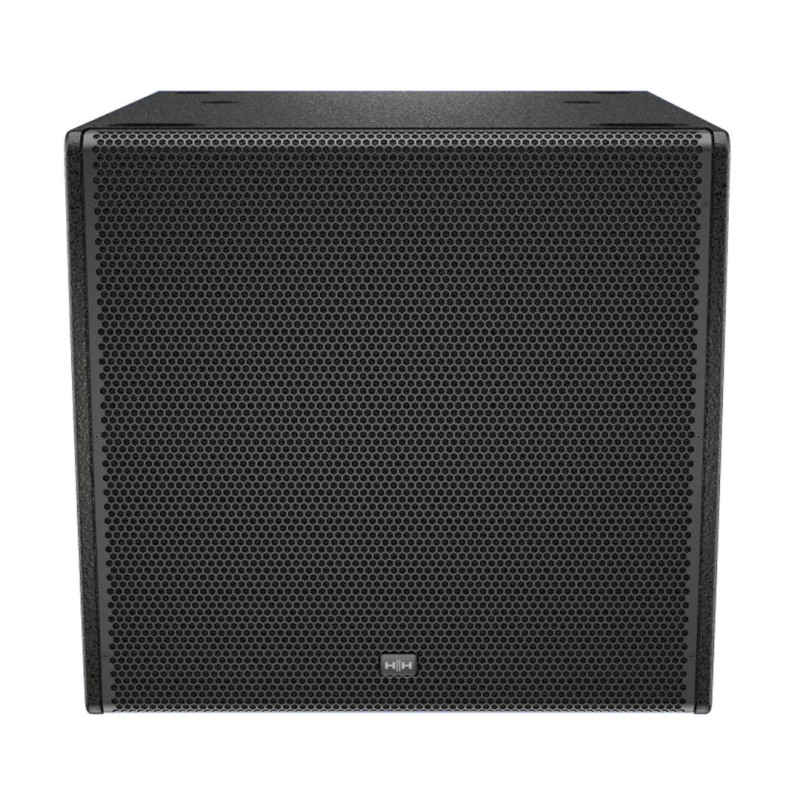

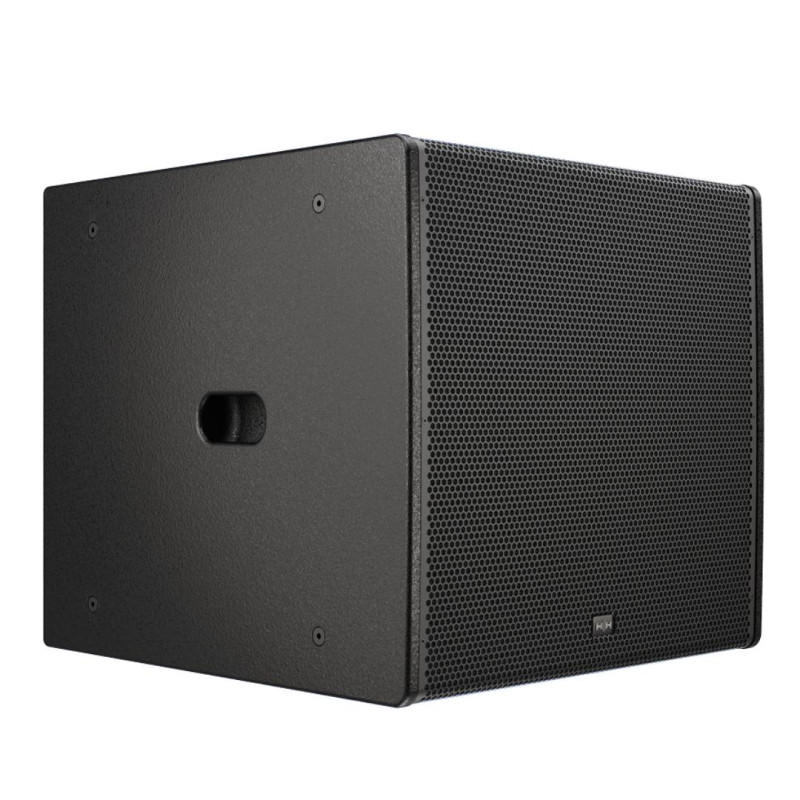

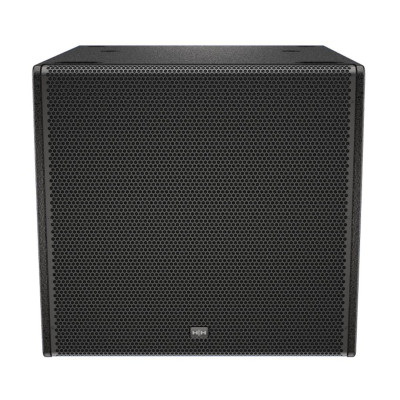

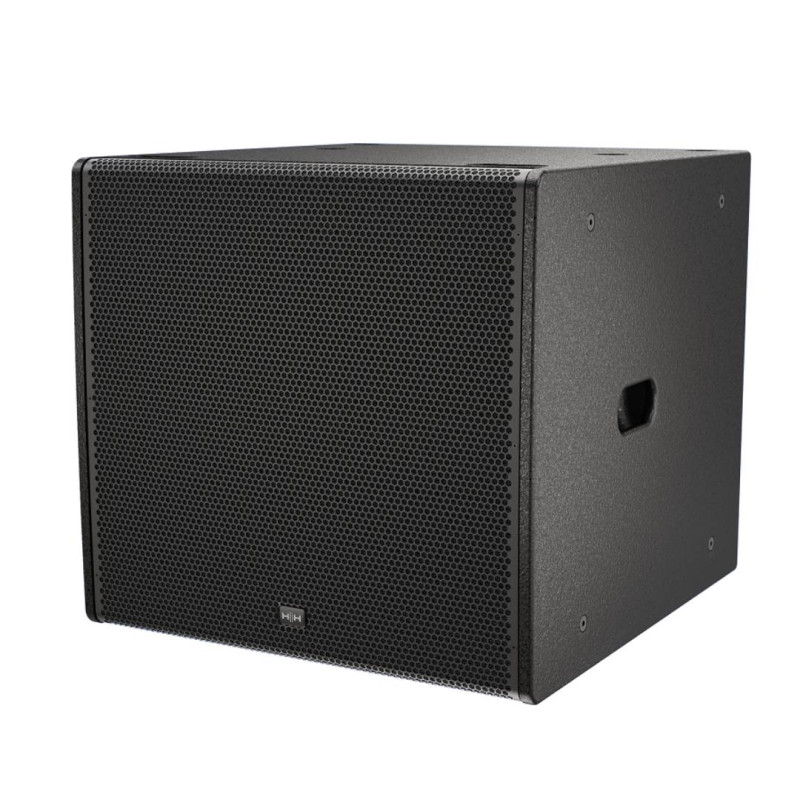

HH Electronics TNA-1800SA Active Subwoofer 18"

TESSEN LINE ARRAY SERIES ACTIVE SUBWOOFER 18"

The TNA-1800SA Active subwoofer features a HH designed 18-inch low frequency woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1800SA can be installed quickly and easily. The TNA-1800SA offers a max SPL of 138 dB and offers a frequency response as low as 32Hz. The TNA-1800SA offers an ideal venue installation or point source solution. Ideal for venues, schools, sports, gyms, hotels and more.

FEATURES

• High performance 18 inch acve subwoofer
• High power Class-D amplifier
• Universal switched mode supply and global mains operaon
• Adjustable input sensivity, crossover and delay sengs
• Balanced XLR output with switchable full-range and crossover modes

Applications: Bars And Clubs, Live Sound Reinforcement, Ballrooms, Conference / Speech, Worship, Corporate AV event.

SPECIFICATIONS

• Model TNA-1800SA : System Type 18" Active Subwoofer, Direct Radiating, Bass Reflex
• Frequency Response : 2 32Hz - 100Hz (-10dB), 37Hz - 100Hz (-3dB)
• LF Driver : 1x18'' High sensitivity HH designed driver. 4" Voice Coil
• Max SPL 1m : 3 138 dB SPL
• Crossover Active : 70Hz to full range

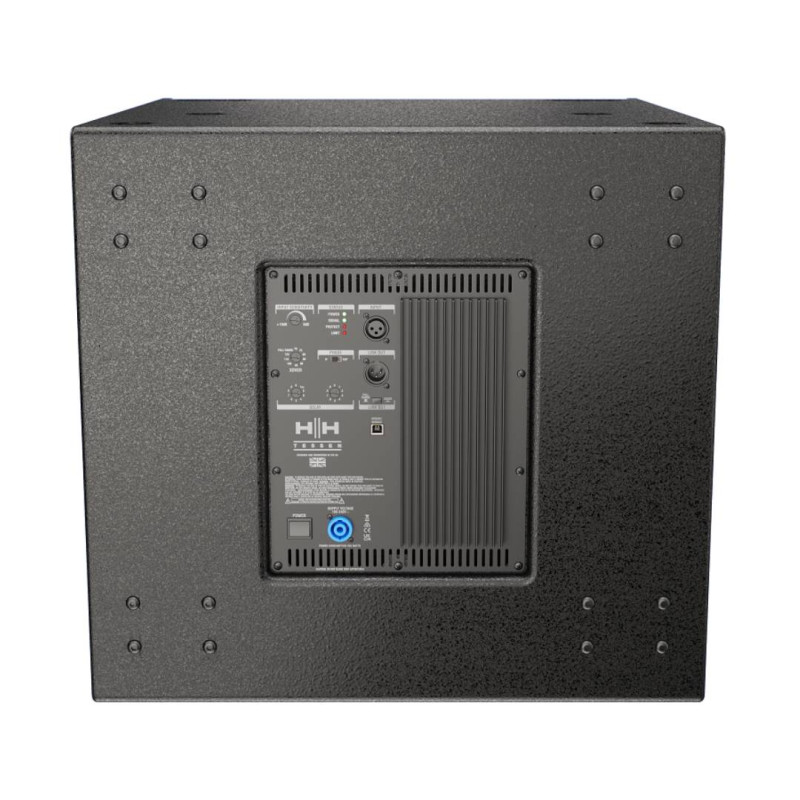

AMPLIFIER

• Power Rating : 4000W Peak, 2000W Continuous, 1000W RMS
• Input Sensitivity : 0dBu to +10dBu Adjustable
• Maximum Analogue Input Level : +21dBu
• Input Connector Balanced : Female XLR
• Output Connector Balanced : Male XLR (Switchable Full Range/Xover)
• Signal Indicators : Power, Signal Present, Clip Indicator, Protect
• Controls : Input sensitivity, Crossover frequency, Phase Switch, Variable Delay (0>9.9mS)
• AC Power : ~100V-240V 50/60Hz
• AC Power Consumption : 350W
• AC Power Inlet : Twist Lock Power Socket

ENCLOSURE

• Cabinet : Acoustically optimised 18mm plywood cabinet with extensive internal bracing
• Finish : Painted Black (White finish optional, subject to MOQ)
• Mounting Points : 8x M10 Penn Elcom tie down/flying points. 16x M8 inserts for optional transport wheels
• Grille : 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined

PACKAGING DETAILS

• Unit dimensions (HWD) : 562 x 600 x 640mm, 22.1" x 23.6" x 25.2"
• Unit weight : 43.5Kg, 95.9 lbs
• Carton dimensions (HWD) : 740 x 730 x 765mm, 29.1" x 28.7" x 30.1" , 0.413 M3
• Packed weight : 51.3Kg, 113.1 lbs
