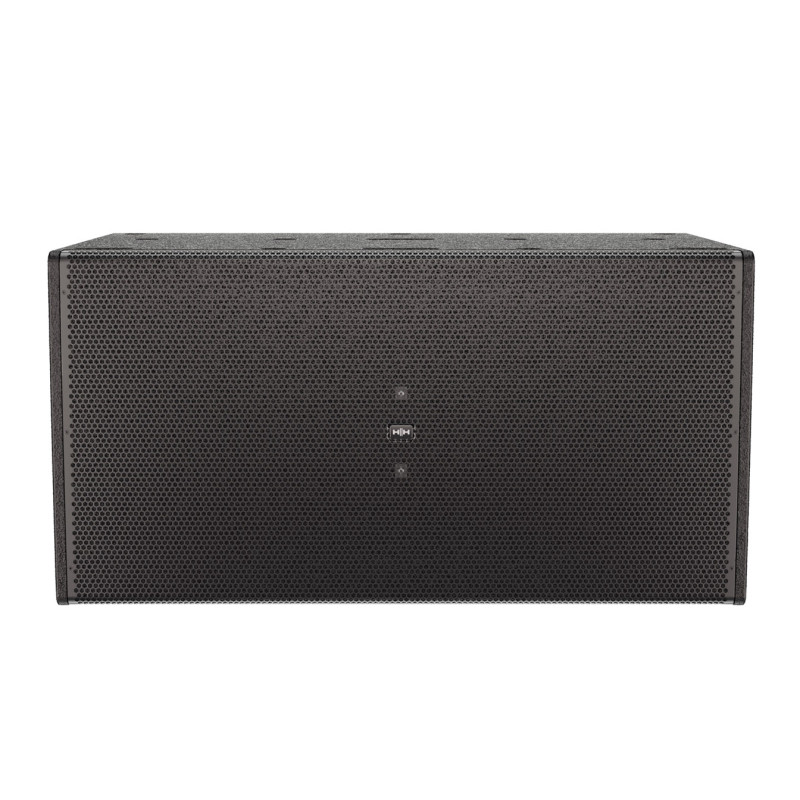

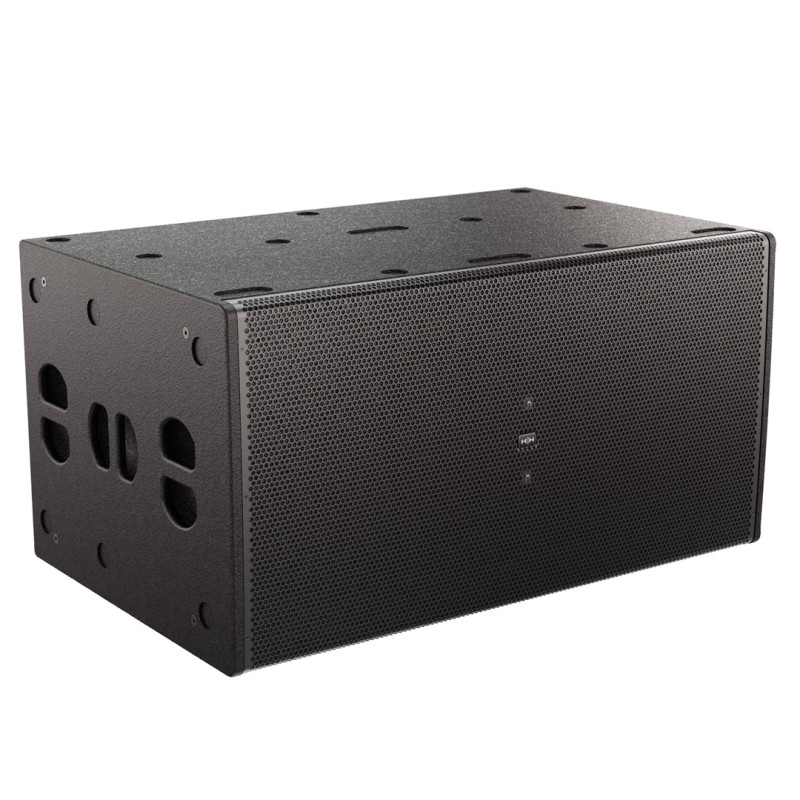

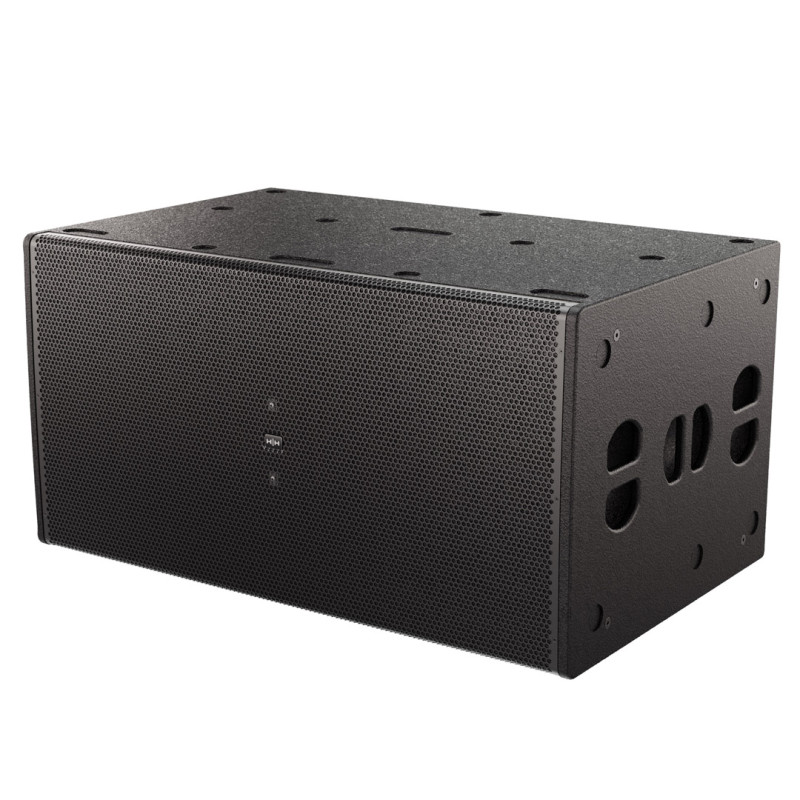

HH Electronics TNA-2800SA Active Subwoofer 18"

TESSEN LINE ARRAY SERIES - DUAL ACTIVE SUBWOOFER 18"

The TNA-2800SA Active subwoofer features two HH designed 18" low frequency woofers with exceptionally high output. Equipped with integrated rigging hardware, the TNA-2800SA can be installed quickly and easily. The TNA-2800SA offers a max SPL of 144 dB and offers a frequency response as low as 32Hz. The TNA-2800SA offers an ideal venue installation or point source solution. Ideal for bars, clubs, venues, schools, sports, gyms, hotels and more.

FEATURES

• High performance 18 inch active subwoofer
• High power Class-D amplifier
• Universal switched mode supply and global mains operation
• Adjustable input sensivity, crossover and delay settings
• Balanced XLR output with switchable full-range and crossover modes

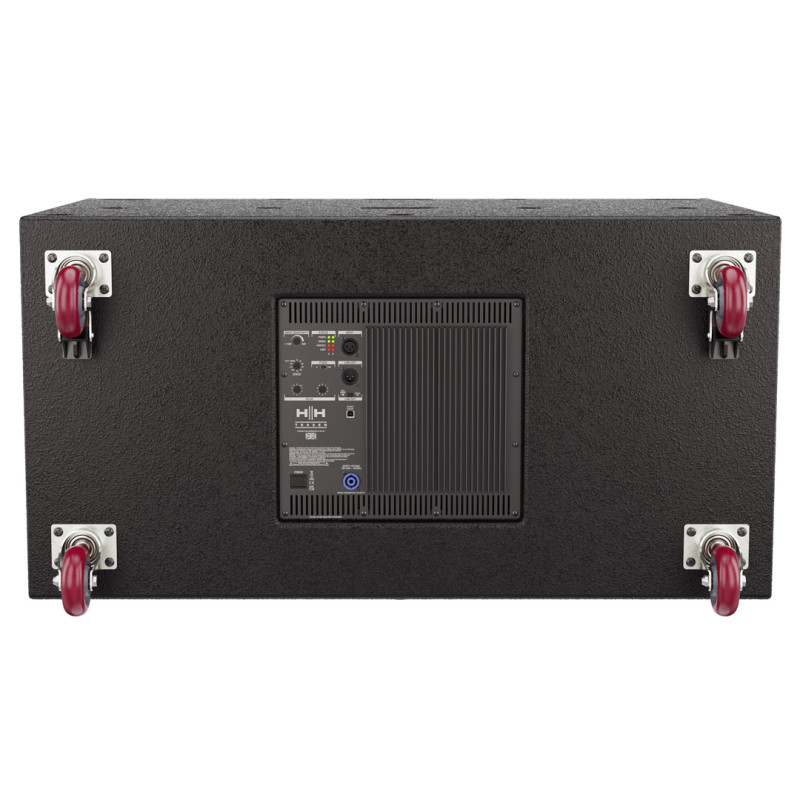

• 4pcs Heavy duty 100mm PU castors included

Applications: Bars And Clubs, Live Sound Reinforcement, Ballrooms, Conference / Speech, Worship, Corporate AV event.

SPECIFICATIONS

• Model : TNA-2800SA
• System Type : Dual 18" Active Subwoofer, Direct Radiating, Bass Reflex
• Frequency Response : 32Hz - 100Hz (-10dB), 37Hz - 100Hz (-3dB)

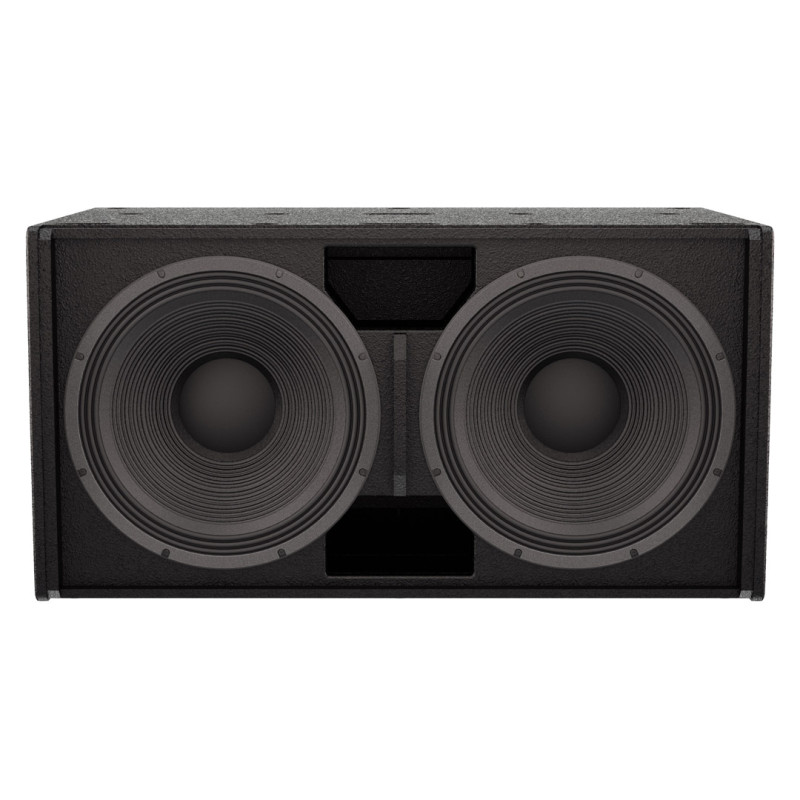

• LF Driver: 2x18" High sensitivity HH designed driver. 4" Voice Coil
• Max SPL 1m3: 144
• Crossover Active : Active - 70Hz to 120Hz

AMPLIFIER

• Power Rating : 8000W Peak, 4000W Continuous, 2000W RMS
• Input Sensitivity : 0dBu to +10dBu Adjustable
• Maximum Analogue Input Level : +21dBu
• Input Connector Balanced : Balanced Female XLR
• Output Connector Balanced : Balanced Male XLR (Switchable Full Range/Xover)
• Signal Indicators : Power, Signal Present, Clip Indicator, Protect
• Controls : Input sensitivity, Crossover frequency, Phase Switch, Variable Delay (0>9.9mS)
• AC Power : -100V-240V 50/60Hz
• AC Power Consumption : 700W Typical, 1500W Max
• AC Power Inlet : Twist Lock Power Socket. (Plug included, to be wired by installer)

ENCLOSURE

• Cabinet : Acoustically optimised 18mm plywood cabinet with extensive internal bracing
• Finish : Painted Black (White finish optional, subject to MOQ)
• Mounting Points : 8x M10 Penn Elcom tie down/flying points. 16x M8 inserts for optional transport wheels
• Grille : 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
• Transport Wheels : 4pcs Heavy duty 100mm PU castors included in the box
