HH Electronics TNX-1201 - 12" Active Speaker

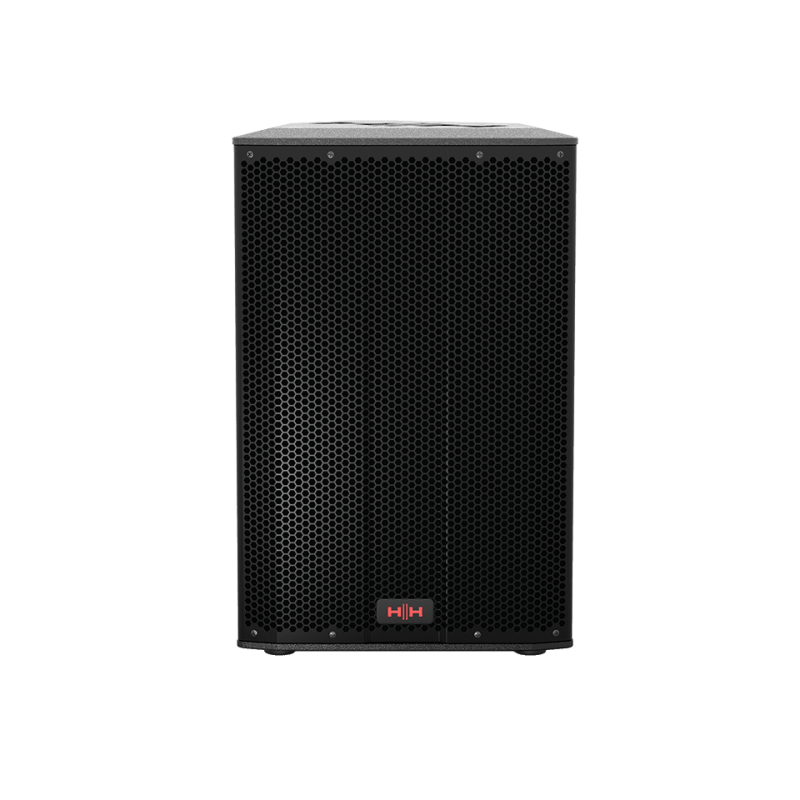

TNX-1201 12" Two-way Powered Loudspeaker

A Compact and versatile loudspeaker in the Tessen-X range. It has beed deigned to deliver maximum performance for it's size and is suitable for front of house PA. stage monitor install use.

The 2600W TESSEN-X TNX-1201 Active speaker gives unmatched performance in a lightweight compact package. Foam backed 1.5mm steel grille, multi-layer plywood construction, an attractive hard-wearing finish and precision engineered components ensure the TNX-1201 out performs bigger, more expensive systems. TESSEN-X Engineered for the best audio quality, with complete flexibility and class-leading features, the TESSEN-X series sets the standard for high power, compact, professional systems. Equally at home on the road or installed in a venue, the TESSEN-X series is a sound investment.

FEATURES

• Premium High sensitivity, long trow CELESTION 12" woofer
• Premium High performance, CELESTION 1.4" compression driver
• 2600W asymmetric highly efficient Class D Bi-amp
• 7x10 fly points for horizontal or vertical suspesion
• 35mm pole mount.

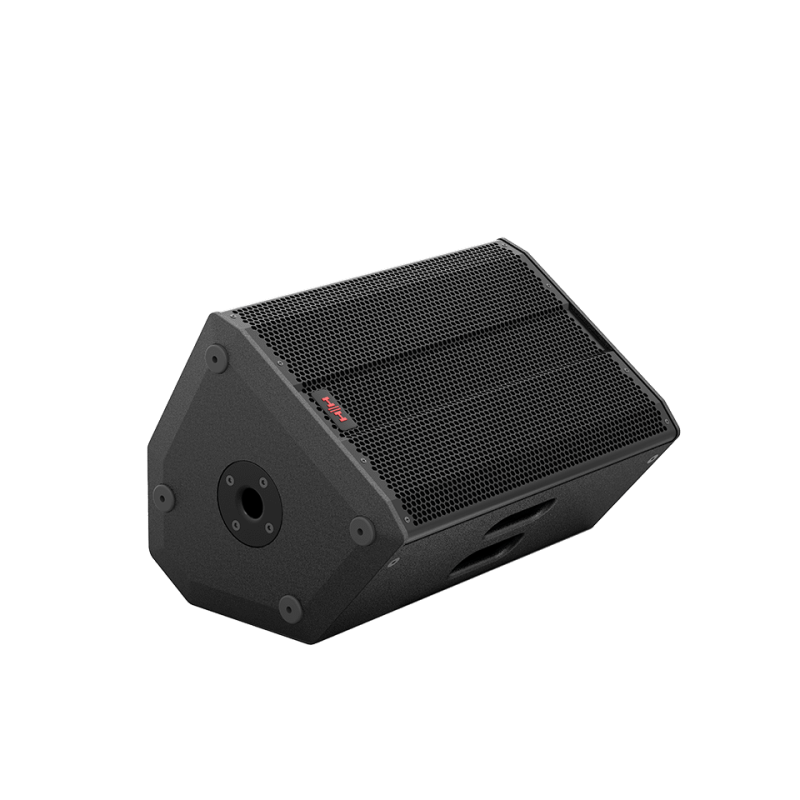

• 35 (Degree) monitor angel
• Custom design DSP engine
• EQ pre-sets for room / application optimisation
• Variable EQ for instant fine tuning for venue / audience size
• Auto-raging feedback suspension
• Inbuilt 2 channel mixer
• Extensive protection
• Multilayer plywood costruction with hardwearing black finish
• 1.5mm steel grille with acoustic foam backing for maximum driver protection
• Frequency Range : (-10) 45-20Khz
• Frequency Range : (-3) 57-20Khz

Applications: : Bars And Clubs, Live Sound Venues, Ballrooms, Worship Facilities, Worship, General Sound reinforcement

SPECIFICATIONS

• Model : TNX-1201
• System Type : 2 way active 12" loudspeaker, Bass Reflex
• Frequency Response (-10) : 45Hz - 20Hz
• Frequency Response (-3) : 57 -20 Khz
• Max SPL 1m3:132
• Crossover Active : Active - 70Hz to 120Hz

AMPLIFIER

• Power Rating : 2600W Peak, 1300W Continuous
• Input Impedence : 22k Balanced, 10k Unbalanced
• Gain : 20dBu
• Maximum Input Level: Mic/Line : 21dBu

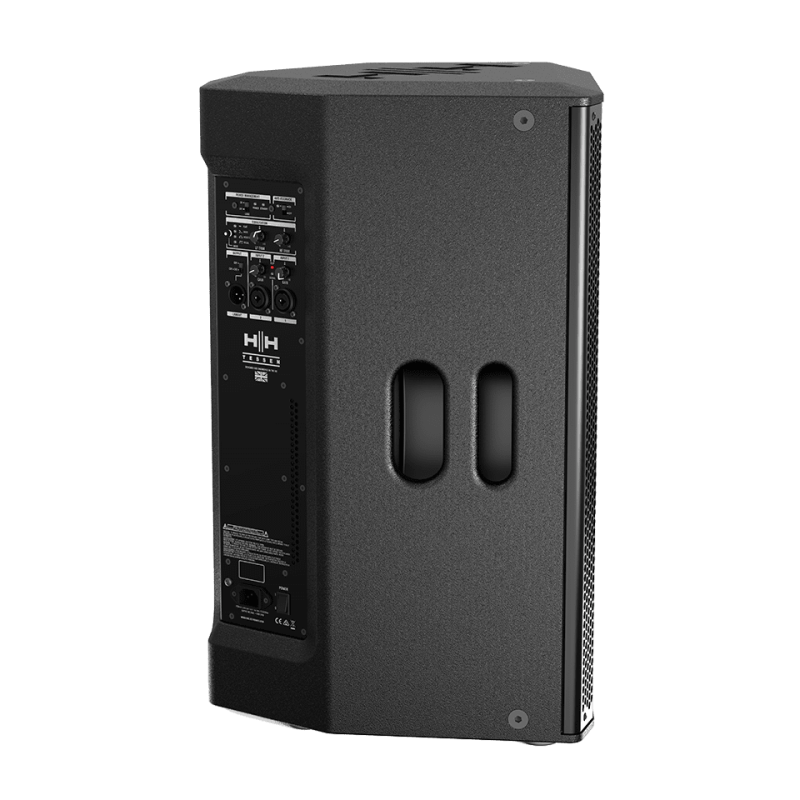

• Input Connectors : 2x Balanced Combi XLR/1/4" (Jack Connectors)
• Output Connectors : 1x Balanced XLR Output
• Signal Indicators : Power, Stadby, Anti-Feedback, Signal Present, Clip Indicator, EQ Mode
• DSP : Crossover, EQ, Phase, and time optimisation
• AC Power : -100V-240V 50/60Hz
• AC Power Consumption : 150W (1/8th Power)

SPEAKER

• HF Driver : 1.4" Celestion CDX1 compression driver
• LF Driver : Celestion TF1225
• Coverage : 90H x 60v nominal
• Crossover Frequency : 3Khz
