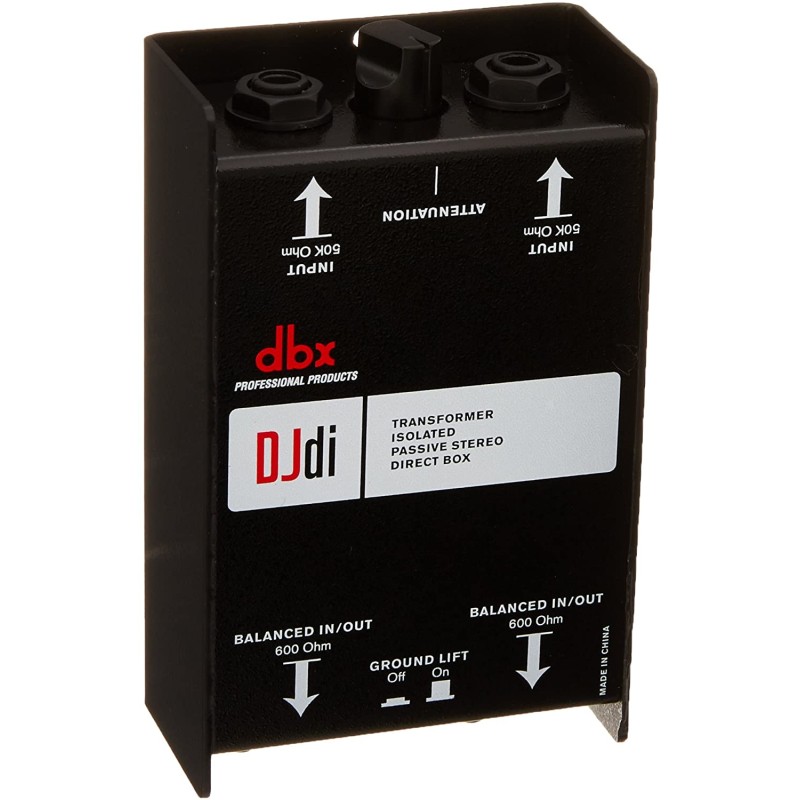

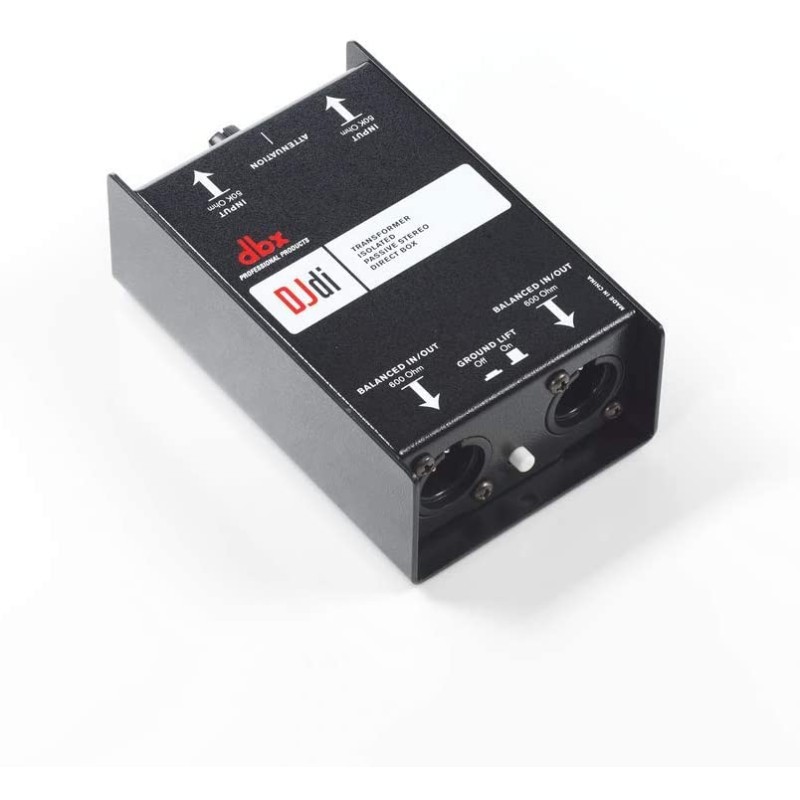

DBX DJDI Passive 2-Channel Passive Direct Box w/ Line Mixer

DJDI

Passive 2-Channel Passive Direct Box w/ Line Mixer

Plug your stereo high-impedance gear into your low-impedance rig with the dbx DJDI 2-Channel Passive Direct Box. Requiring no power supply, the DJDI can conveniently operate in situations where phantom power is not available without needing battery changes to power active electronics found in some DI boxes. A built-in ground-lift switch can help avoid noise from ground loops. Another feature on the DJDI is the input attenuator which prevents overloading from high-level signals.

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.

Features

• Dual Channel

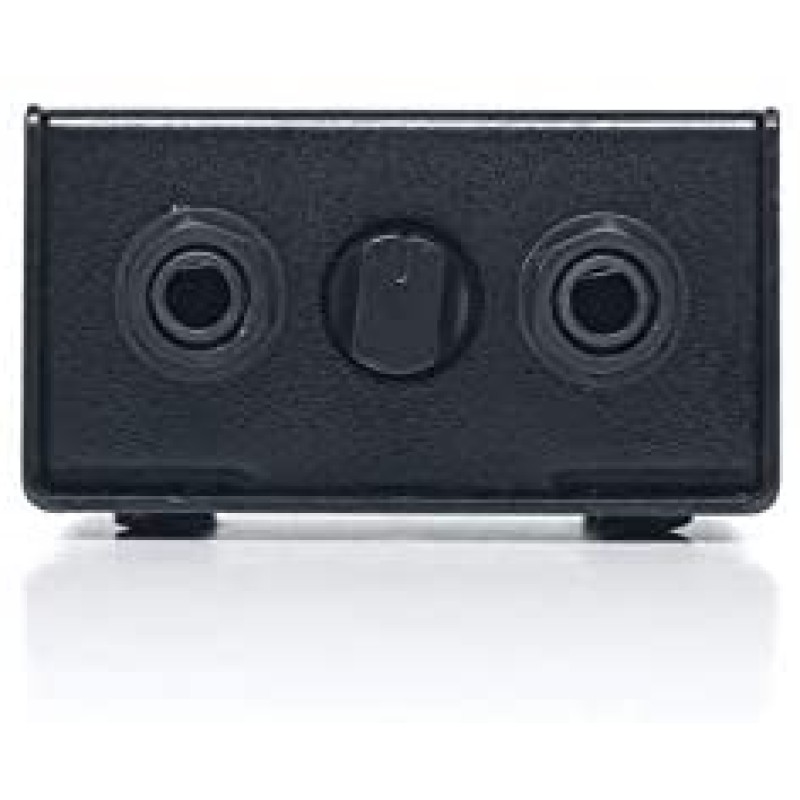

• (2) 1/4” 50k Ohm TS Inputs

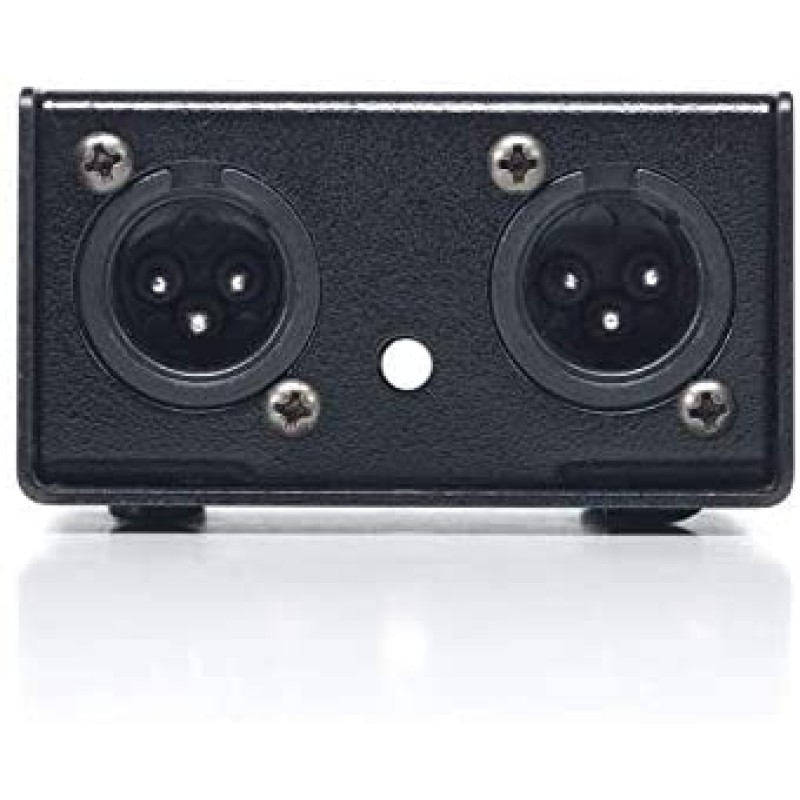

• (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
• Passive Circuit Design
• Continuously Variable Input Attenuator
• Ground Lift Switch
