Honeywell L-PCM06E CEILING LOUDSPEAKER

CEILING LOUDSPEAKER

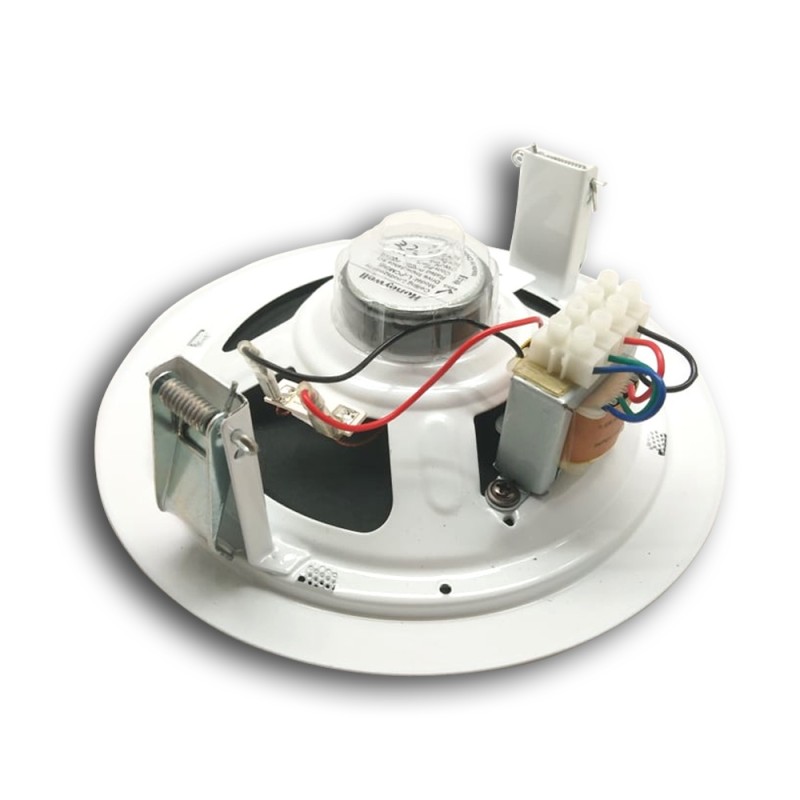

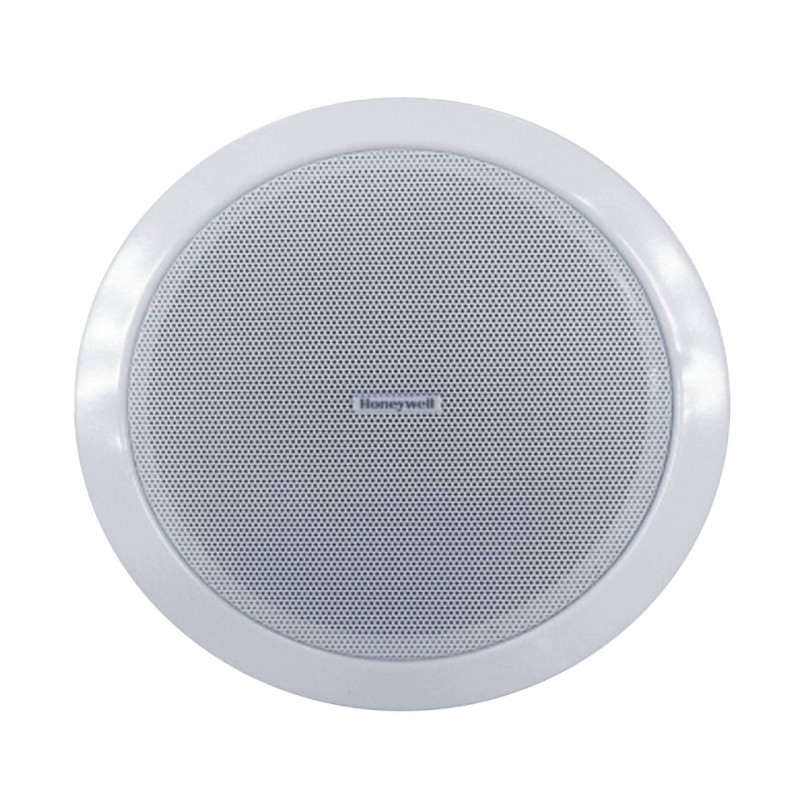

L-PCM06E is a cost-effective ceiling loudspeaker that has excellent audio performance and an aesthetically appealing enclosure. Its low-profile appearance and compact structure make it blend easily into various indoor applications. The loudspeaker has three primary power taps to meet the basic requirement for most indoor applications. Its metal enclosure protects the internal components from the damage of burning flame.

In applications with higher security demand, we offer optional back dome LM2-MMB for choice, constructing a complete metal housing, to protect the internal components and in the same time prevent the flame from going through the loudspeaker to burn the devices upon the ceiling. With precise ergonomic design, you would find the mounting of the back dome to the loudspeaker easier than easier. The enclosure and back dome are both made of metal, and it complies with CE and RoHS standards.

Ceiling Loudspeaker

• Clear audio and background music reproduction
• Low-profile appearance
• Simple power setting
• In-ceiling mounting with/without back dome
• Multiple installation choices at ease
• Complied with CE and RoHs standard

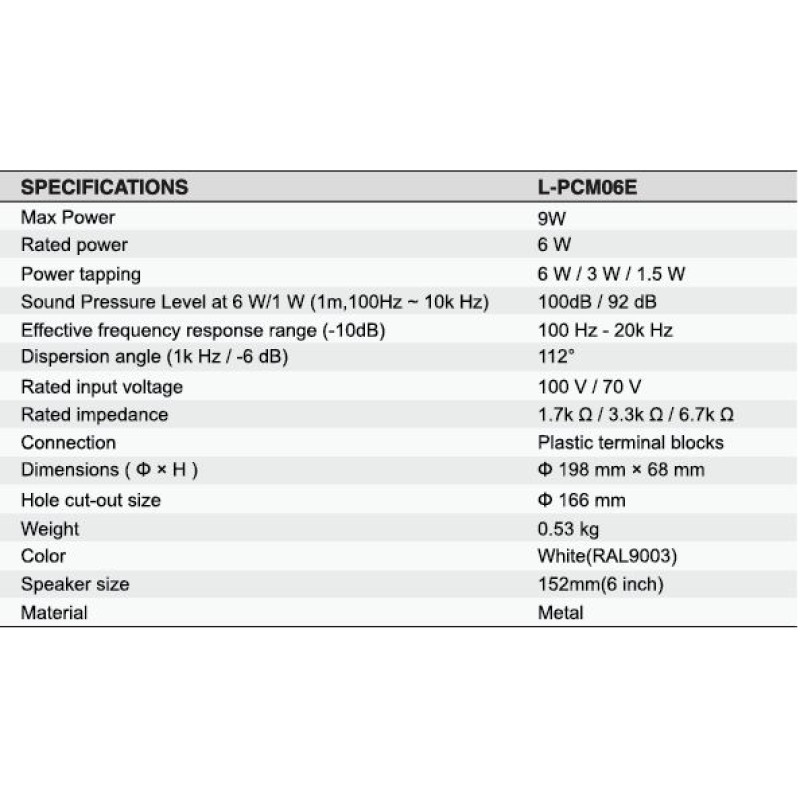

TECHNICAL SPECIFICATIONS

Max power Model Rated power Power tapping Effective frequency response Sound pressure level Dispersion angle (1k Hz / -6 dB) Rated input voltage Rated impedance Connection Hole cut-out size

Weight L-PCM06E 9 W 6 W 6 W / 3 W / 1.5 W 100dB / 92 dB 100 Hz - 20k Hz 112° 100 V / 70 V 1.7k Ω / 3.3k Ω / 6.7k Ω

• Plastic terminal blocks Φ 166 mm 0.53 kg
• Dimensions (Φ × H ) Φ 198 mm × 68 mm
• Clear audio and background music reproduction
• Low-profile appearance l Simple power setting
• In-ceiling mounting with/without back dome
• Multiple installation choices at ease

Complied with CE and RoHs standard L-PCM06E is a cost-effective ceiling loudspeaker that has an excellent audio performance and esthetic appealing enclosure.

Its low-profile appearance and compact structure makes it blend easily into various indoor applications. The loudspeaker has three primary power tapping to meet the basic requirement for most indoor applications. Its metal enclosure protects the internal components from damage of burning flame. In applications with higher security demand, we offer optional back dome LM2-MMB for choice ,constructing a complete metal at 6 W/1 W (1m,100Hz ~ 10k Hz) range (-10dB) L-PCM06E Ceiling Loudspeaker FEATURES Color Speaker size White(RAL9003) 152mm(6 inch) LM2-MMB Φ 165 mm × 89 mm 0.26 kg White(RAL9003) L-PCM06E LM2-MMB Material Metal Meta
