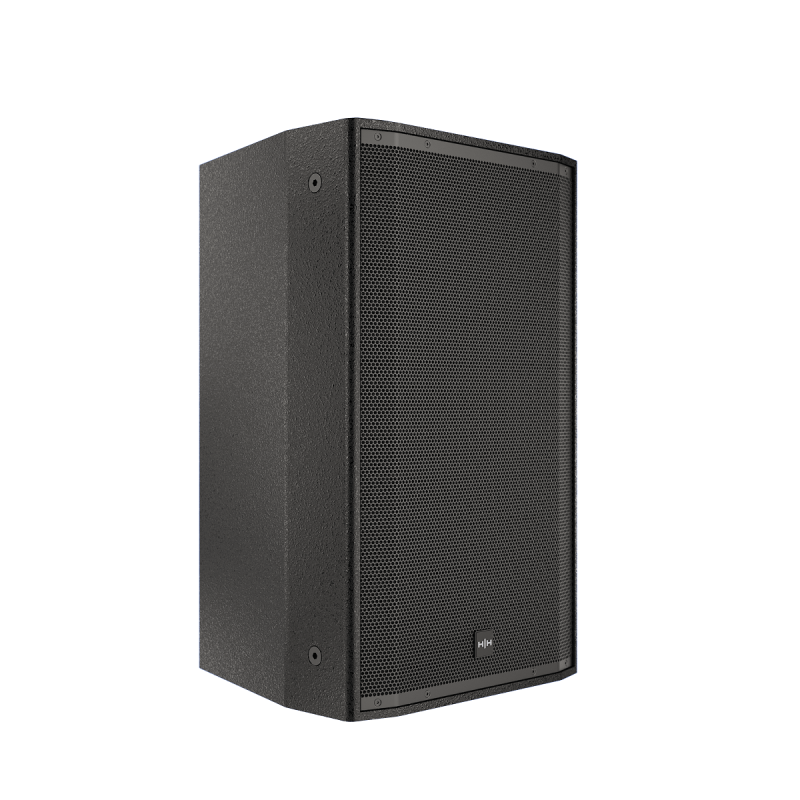

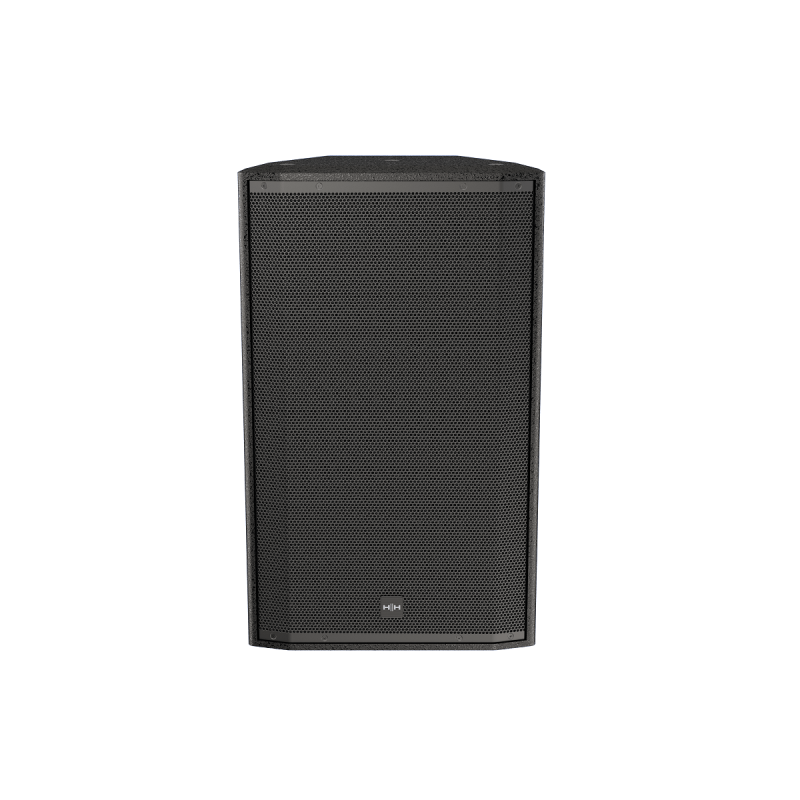

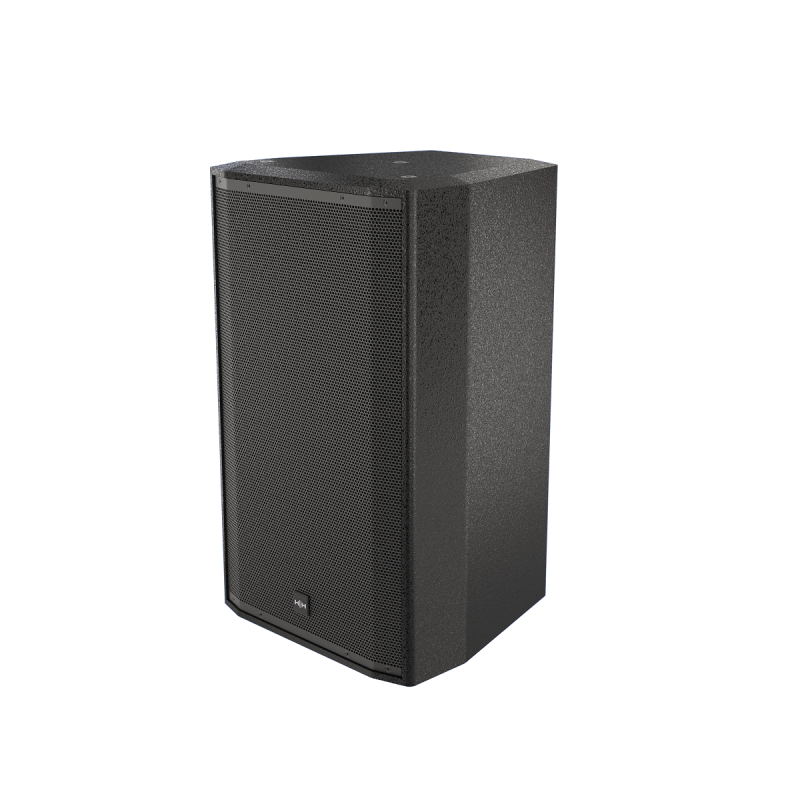

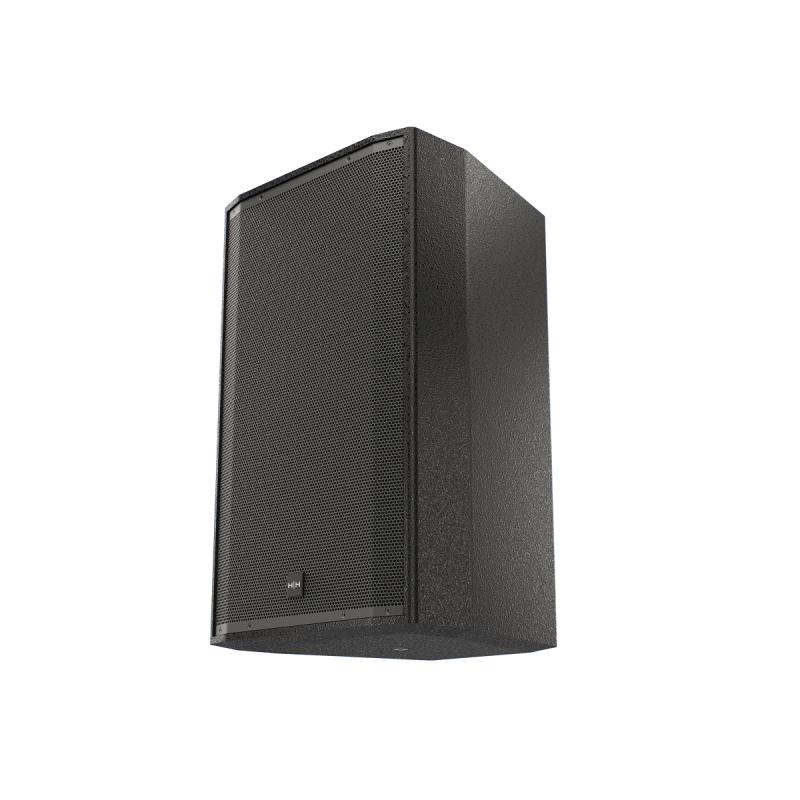

HH Electronics TNi-W12PRO-BK 12" wall-mount speaker

12" 2-Way Full-Range Passive Wall-Mount Speaker

Professional installation sound with powerful, detailed performance.

The HH Electronics TNi-W12PRO-BK is a high-power 12-inch 2-way passive full-range loudspeaker designed for professional sound reinforcement and permanent installation applications.

Featuring a 12-inch HH high-performance low-frequency driver with a 2.5-inch voice coil and a 1.4-inch Celestion CDX1-1445 high-frequency compression driver, the TNi-W12PRO delivers powerful low-end response, clear vocals and detailed high frequencies.

Its specially designed rotatable waveguide allows the speaker to be installed in either vertical or horizontal orientation, while providing a controlled 90° × 60° dispersion pattern.

Key Features

• 12" HH high-performance LF driver
• 2.5" voice coil
• 1.4" Celestion CDX1-1445 HF compression driver
• 2-way full-range passive design
• Bass-reflex enclosure
• 300W AES / 600W continuous / 1200W peak
• 8Ω nominal impedance
• Up to 128dB peak SPL /li>
• 90° × 60° dispersion
• Rotatable waveguide for vertical or horizontal installation
• 7 × M10 fly points
• 4 × M8 mounting points
• Compatible with optional TNi-BRK30 multi-angle wall bracket
• Euroblock and M4 barrier-strip connections
• Rugged 15mm plywood enclosure
• Powder-coated steel grille with acoustic foam backing

Powerful Full-Range Performance

The TNi-W12PRO combines a high-output 12-inch HH-designed LF driver with a professional Celestion high-frequency compression driver to provide balanced full-range sound for both music and speech applications.

With 300W AES power handling, 600W continuous power and 1200W peak capability, it is designed for demanding professional sound reinforcement environments.

Flexible Installation

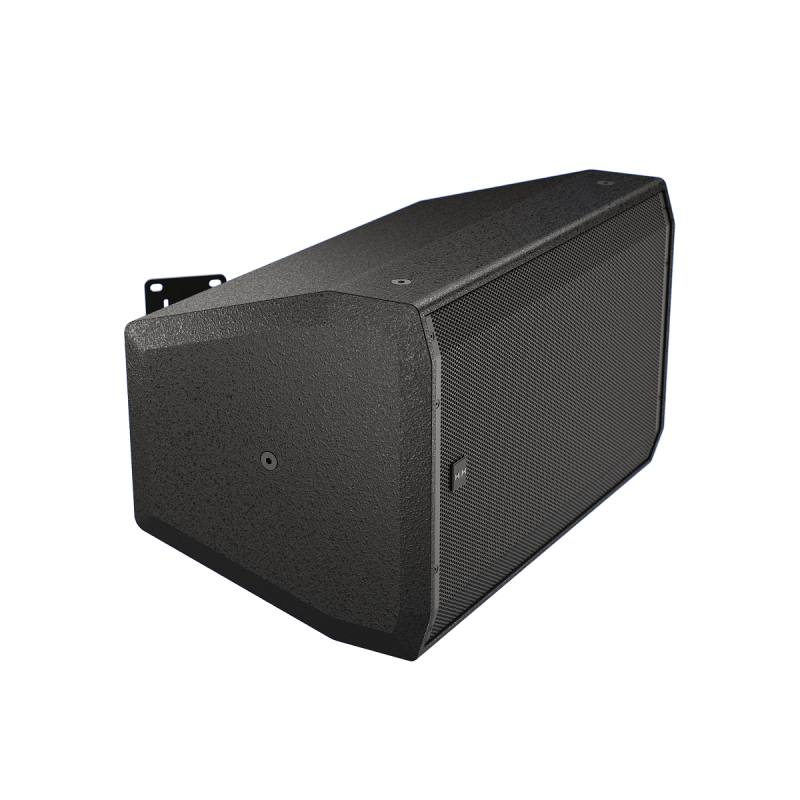

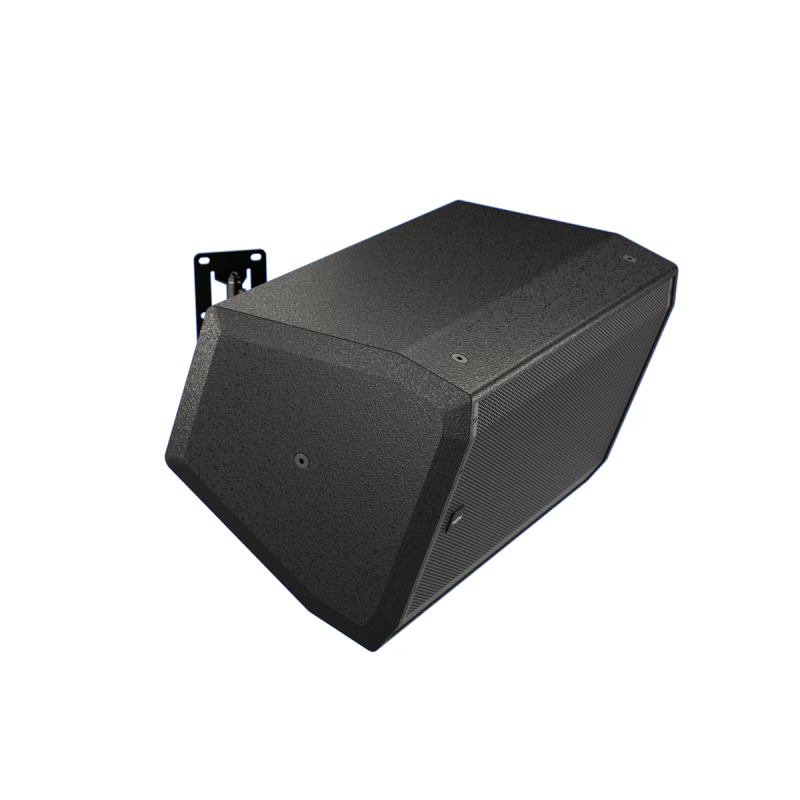

One of the standout features of the TNi-W12PRO is its rotatable HF waveguide. This allows the speaker to be positioned horizontally or vertically while maintaining the appropriate dispersion pattern.

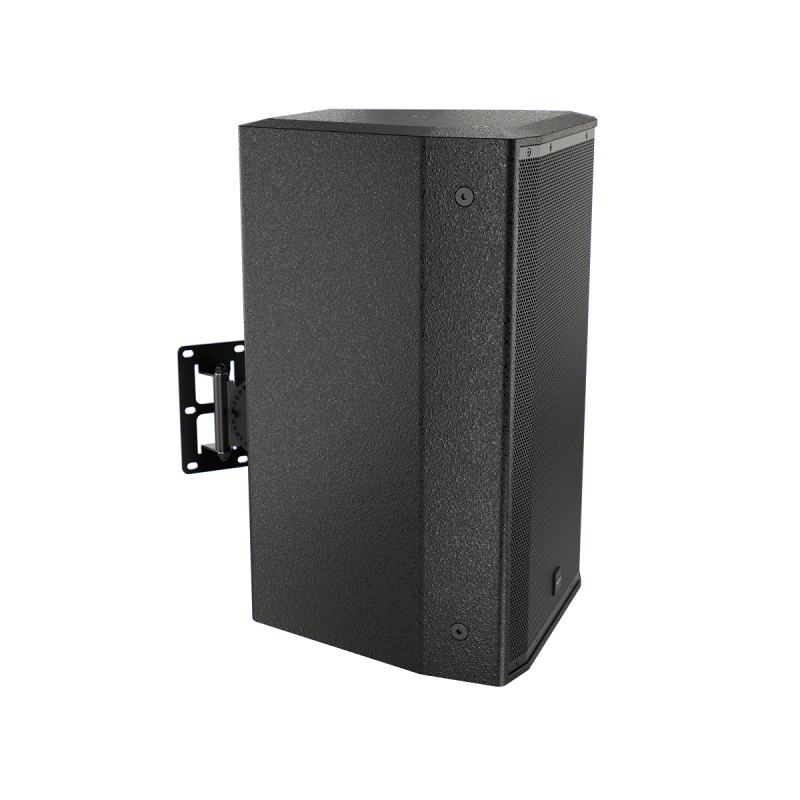

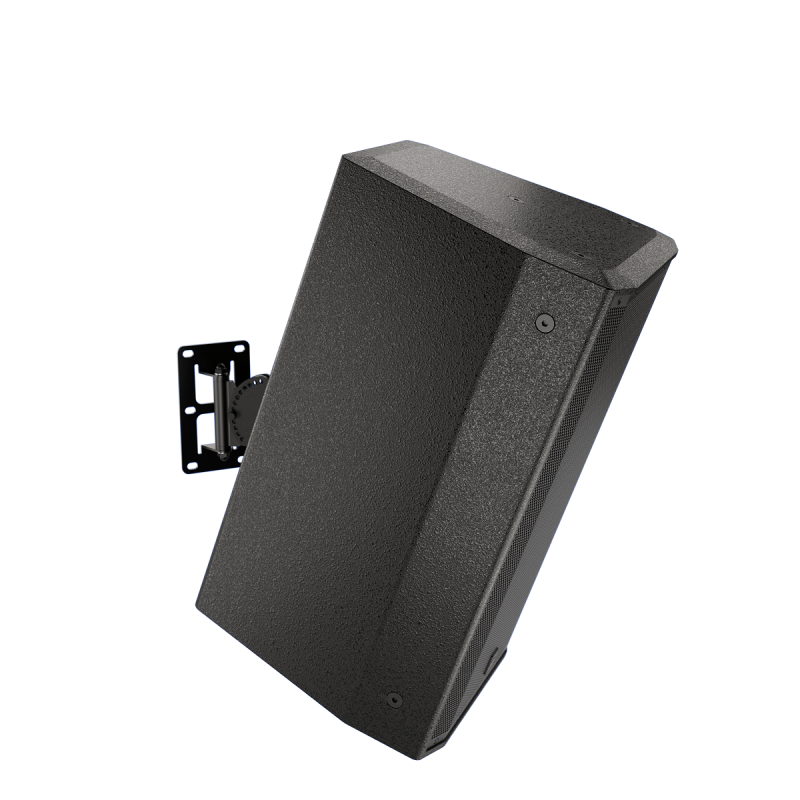

The cabinet includes four M8 mounting points for the optional TNi-BRK30 multi-angle wall bracket, along with seven M10 Penn-Elcom fly points for suspended or flown installations.

Built for Professional Installations

The TNi-W12PRO features a robust 15mm plywood enclosure with a hard-wearing spatter finish. A powder-coated steel grille with acoustic foam backing protects the drivers while maintaining a professional appearance.

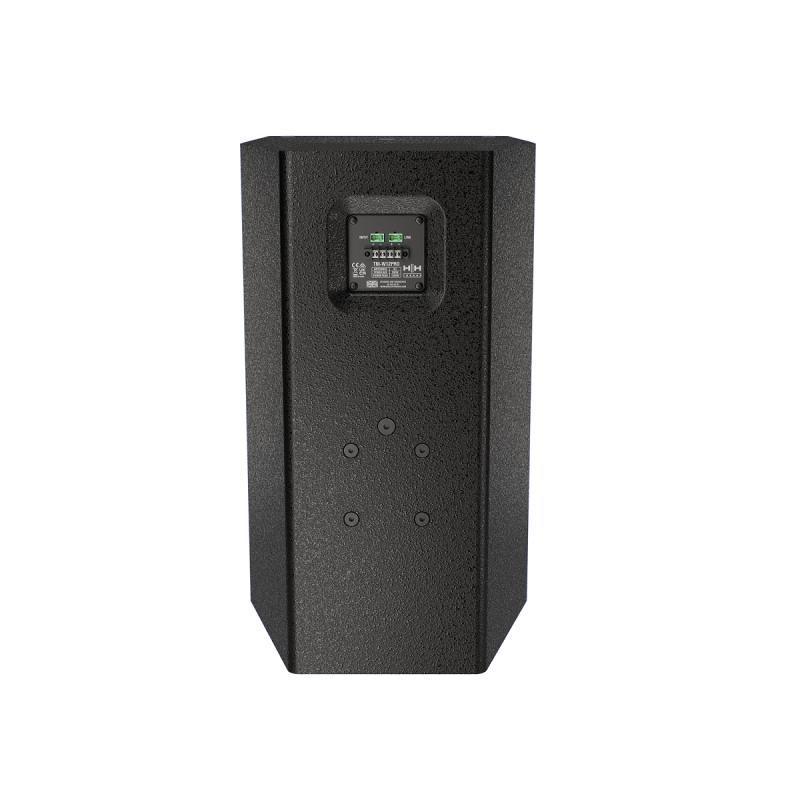

Its recessed rear connection panel provides both Euroblock and M4 barrier-strip connections, making it suitable for a variety of professional installation environments.

Why Choose the HH TNi-W12PRO-BK?

• ✔ Professional 12-inch passive installation speaker
• ✔ 300W AES / 1200W peak power handling
• ✔ Celestion high-frequency compression driver
• ✔ Rotatable 90° × 60° waveguide
• ✔ Vertical or horizontal installation
• ✔ Multiple mounting and flying points
• ✔ Rugged 15mm plywood construction
• ✔ Professional Euroblock and barrier-strip connections
• ✔ Excellent for music and speech applications

HH Electronics TNi-W12PRO-BK

Professional installation sound. Powerful performance. Flexible mounting.

The TNi-W12PRO-BK is an excellent solution for venues that require reliable, high-output sound with professional installation flexibility—from bars, restaurants and corporate venues to houses of worship, ballrooms and live performance spaces.

Available now. Contact us for pricing, availability and installation assistance.
