HH ELECTRONICS TNi-C8 Ceiling Speaker

Passive, 2-way Back Can, Bass Reflex, Install Ceiling Speaker

The Tessen TNi-C8 delivers premium audio reinforcement. designed with the installer in mind, The TNi-C8 – 8 inch coaxial ceiling speaker - features a 6 position power tap selector located under the front steel grille, providing swift output adjustment once installed. With connectivity for 70V/100V and 8 ohm low impedance lines, the TNi-C8 delivers a highly flexible solution.

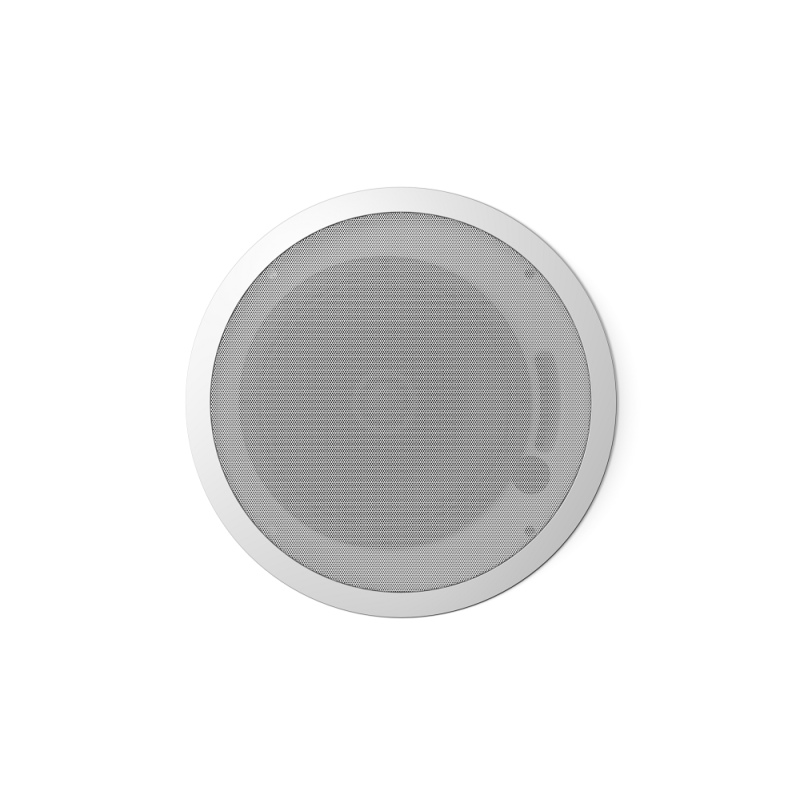

For the ultimate in dynamic sound reproduction, the TNi-C8 delivers unparalleled depth and clarity. The TNi-C8 features a versatile 70V/100V/8Ohm front facing power tap selector; enabling output to be adjusted once mounted. The coaxial driver provides professional audio output with a wide frequency response. The spring-loaded connection terminals ensure that cables are tight prior to installing with the locking dog ear brackets providing secure mounting. Finishing the TNi-C8 is a white ABS surround with a mesh steel grille.

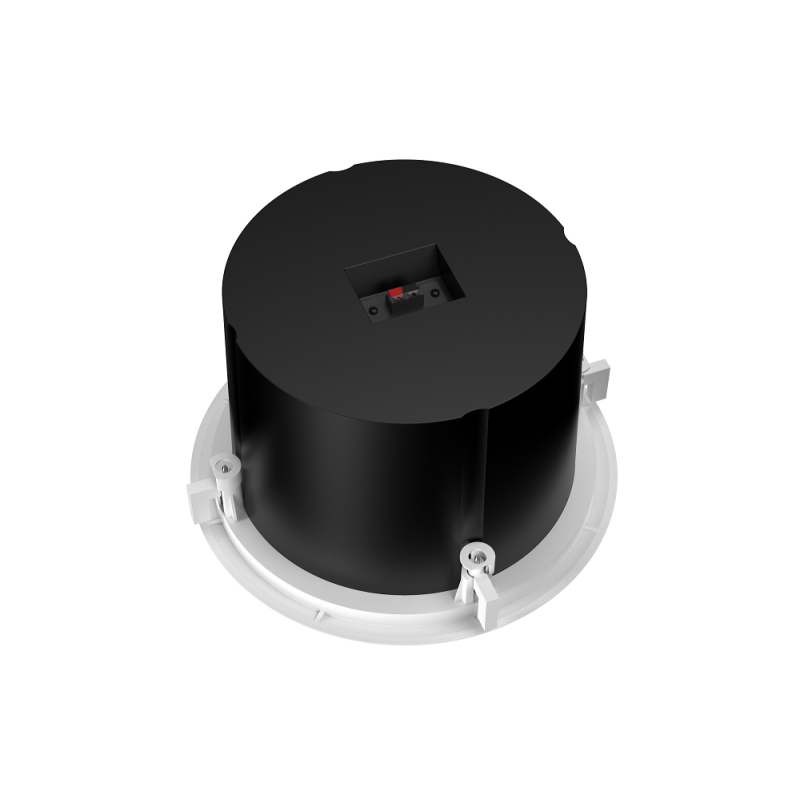

The spring connection terminals ensure cables are secure once fitted.

Specifications

• Model : TNi-C8
• Woofer Size : 8 inch
• Woofer Cone Material : Paper
• Tweeter Size : 1.5 inch Neodymium
• 100V Transformer Power Taps : 40W, 20W, 10W
• 70V Transformer Power Taps : 20W, 10W, 5W
• Low Impedance : 8 ohm
• Power Rating : 65W AES, 260W Peak
• Recommended Amplifier : 100-200W @ 8Ohms
• Sensitivity 1W/1m : 91 db SPL
• Max SPL 1m : 115 dB SPL
• Frequency Response : 65Hz - 20KHz (-10dB) | 80Hz - 16KHz (-3dB)
• Input Connector : Push Spring Connectors
• Nominal Coverage : 100° conical
