HH Electronics TNi-W8-WH Wall Mount Speaker

Wall Mount Speaker

The TNi-W8 delivers professional audio output and versatility within a compact, wall-mount speaker enclosure. The TNi-W8 – 8 inch passive speaker - features 4 power tappings ranging from 2.5W - 40W and can be connected to 70V/100V or 8 ohm low impedance lines. Equipped with euroblock and M4 screw terminals, The TNi-W8 offers a wide array of connections within a single unit.

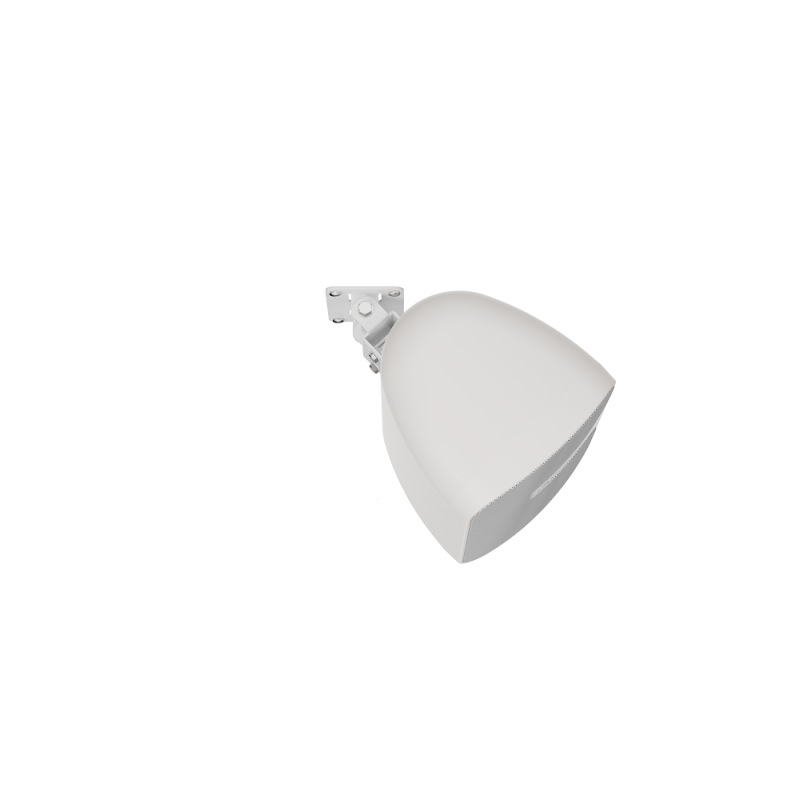

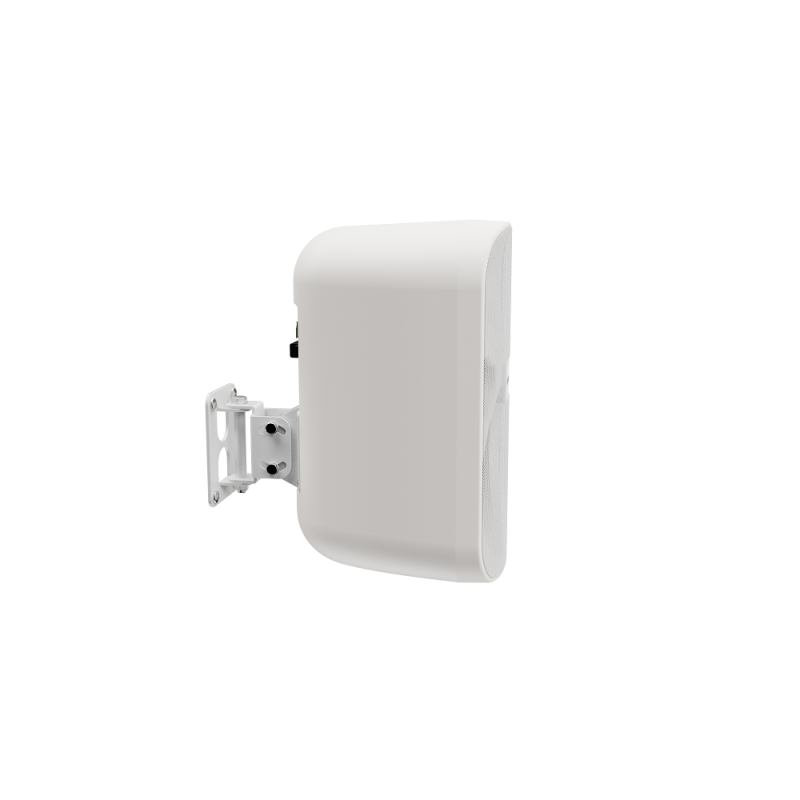

With solid steel, multi-angle bracket included, The TNi-W8 comes with all essential installation components.

For applications where high grade audio is priority, the TNiW8 is the superior solution. The TNi-W8 features 4 power taps from 2.5W - 40W and connects to 70V/100V or 8 Ohm lines. Equipped with Euroblock and M4 screw input/output terminals, the TNi-W8 offers a wide array of connections within a single unit. With a solid steel, multi-angle bracket included, the TNi-W8 comes boxed with essential components. The lightweight ABS enclosure allows manageable handling during installation.

Specifications

• Model : TNi-W8
• System type : Passive, 2-way, Bass Reflex
• Woofer Size : 8"
• Tweeter Size : 1" Dome Tweeter
• 100V Power Options : 40W, 20W, 10W, 5W
• 70V Power Options : 20W, 10W, 5W, 2.5W
• Low Nominal System Impedance : 8 Ohm
• Power Rating : 65W AES, 260W Peak
• Recommended Amplifier : 100-200W @ 8 Ohms
• Sensitivity 1W/1m : 91 dB SPL
• Max SPL 1m : 115 dB SPL
• Frequency response : 55Hz - 20KHz (-10dB) | 75Hz - 18KHz (-3dB)

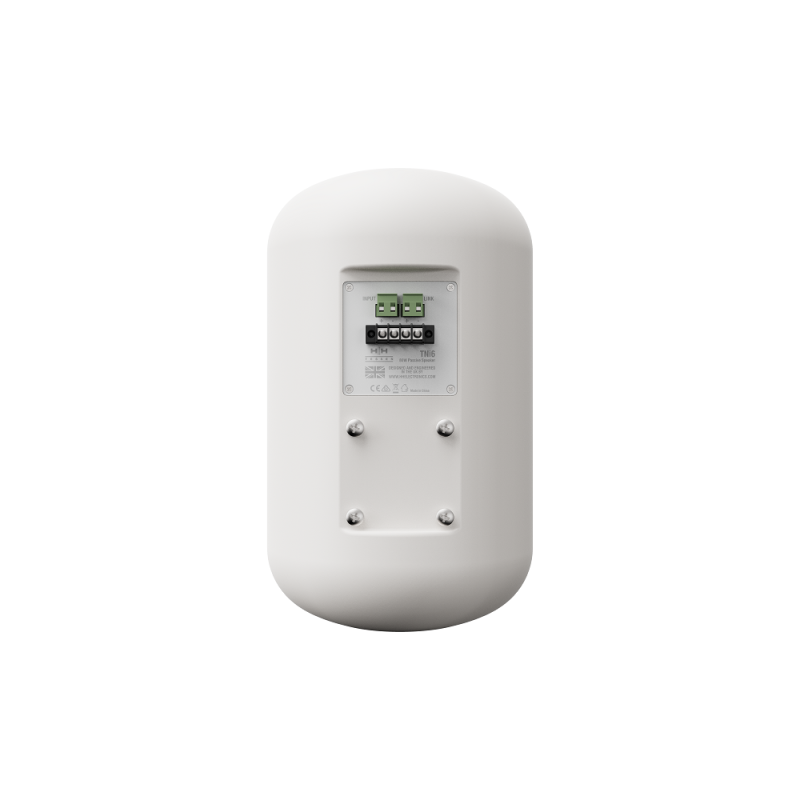

• Input / Link Connector : Euroblock and M4 terminals
• Horizontal Dispersion Angle : 90°
• Vertical Dispersion Angle : 80°
