₱19,900.00

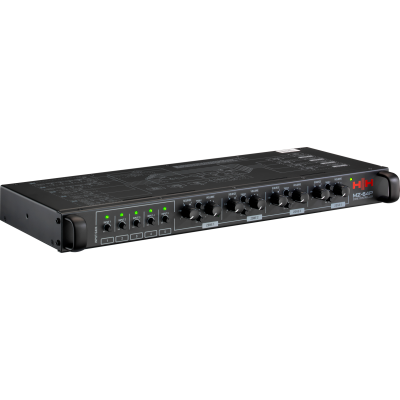

The MZ-64P is a zone control pre-amplifier. Containing four individual distribution zones and five fully featured input channels, audio can be directed accordingly. A dedicated fire/emergency input can override the system. The steel 1U housing is ext...
Availability: In Stock
- Brand: HH Electronics

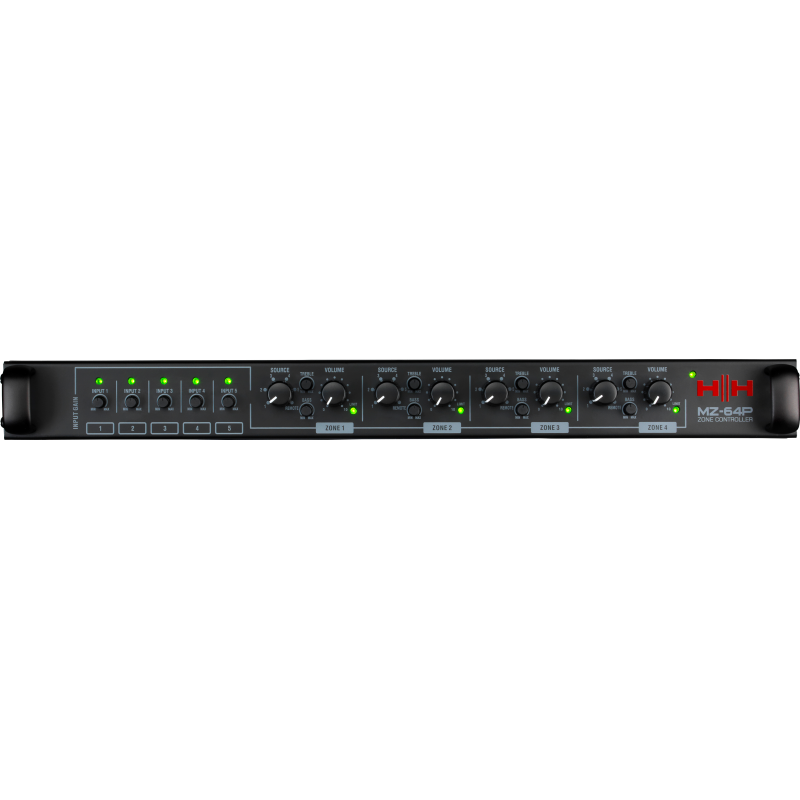

The MZ-64P is a zone control pre-amplifier. Containing four individual distribution zones and five fully featured input channels, audio can be directed accordingly. A dedicated fire/emergency input can override the system. The steel 1U housing is extremely robust and front controls are easy to operate. Front 'scribble' strips allow each zone and input identification.
The perfect installation pre-amplifier for retail, leisure, café, bars and halls.
- 4 zone preamplifier
- 5 comprehensive audio input channels
- Balanced Euroblock line outputs per zone
- Independent bass and treble EQ adjustment on each zone
- Compact space saving fan-less 1U design (rack mountable)
- Universal ~100-240V worldwide operation
- Remote volume control capability using HH MZ-C2 module and standard ethernet cable
| SPECIFICATIONS | |
|---|---|
| System Type | Zone preamplifier with input routing |

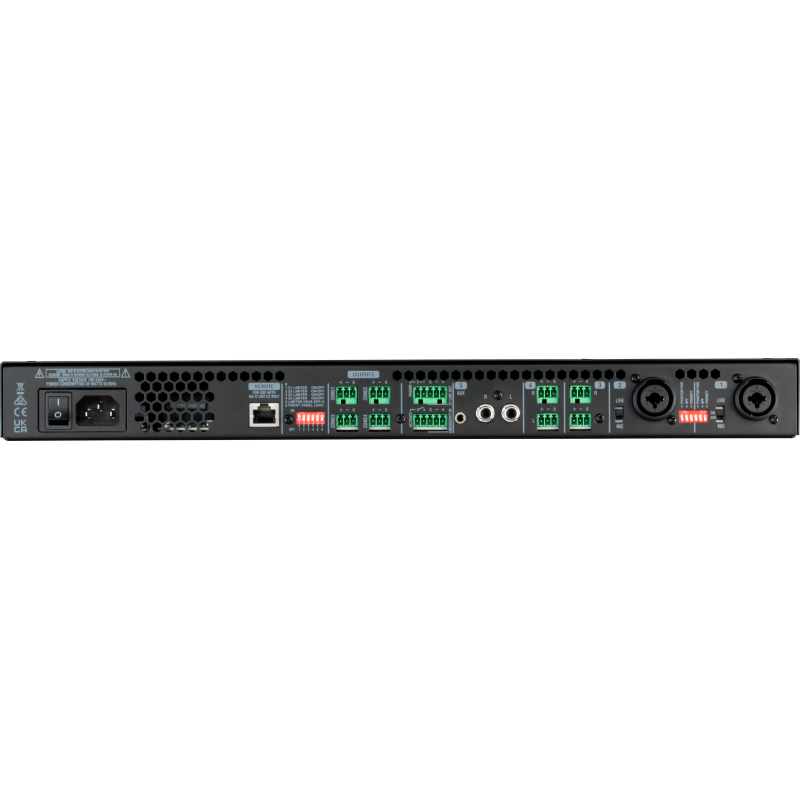

| Inputs | CH1/2 balanced XLR/6.3mm jack combi socket, CH3/4 L&R balanced 3.5mm Euroblock, CH5 3.5mm stereo aux and stereo RCA |
| Outputs | 3.5mm Euroblock connectors for each zone |
| Indicators | Power/Standby, Input signal present and peak LEDs, Output signal present and clip LEDs |
| Controls | Adjustable gain control for each input; source select and volume control for all zones |
| Frequency Response | 20-20kHz ±0.1dBu |
| THD+N | <0.008% @0dBu in, maximum volume; <0.005% @+6dBu in, maximum volume |
| S/N | >110dB |
| Noise Floor | < -90dBu |
| Crosstalk | < -105dB between channels, maximum volume |
| Emergency Override | Balanced 3.5mm Euroblock connector, overriding the normal inputs |
| Lineout | 3.5mm Euroblock line level output that follows zone 1, useful for system expansion |
| Other Controls | CH1/2 Mic/line level, phantom power; individual zone limiters with 0dBu/+4dBu modes; front panel lock |
| DSP | ORIGIN advanced multicore platform |
| EQ | Each zone has bass and treble shelving control with a low pass filter mode; switchable high pass filter on CH1/2 |
| Power Consumption | <8W Typical, <30W Maximum |
| Unit Dimensions (Hwd) | 44 x 483 x 198 mm (1.7" x 19" x 7.8") |
| Unit Weight | 2.3kg, 5.1lbs |
| Carton Dimensions (Hwd) | 150 x 630 x 290 mm (5.9" x 24.8" x 11.4") |
| Packed Weight | 3.8kg, 8.4lbs |
| Accessories | Rack mounting kit, Euroblock connectors (8x 3.5mm 3 way, 2x 3.5mm 5 way, IEC mains lead, HH user manual download card |
