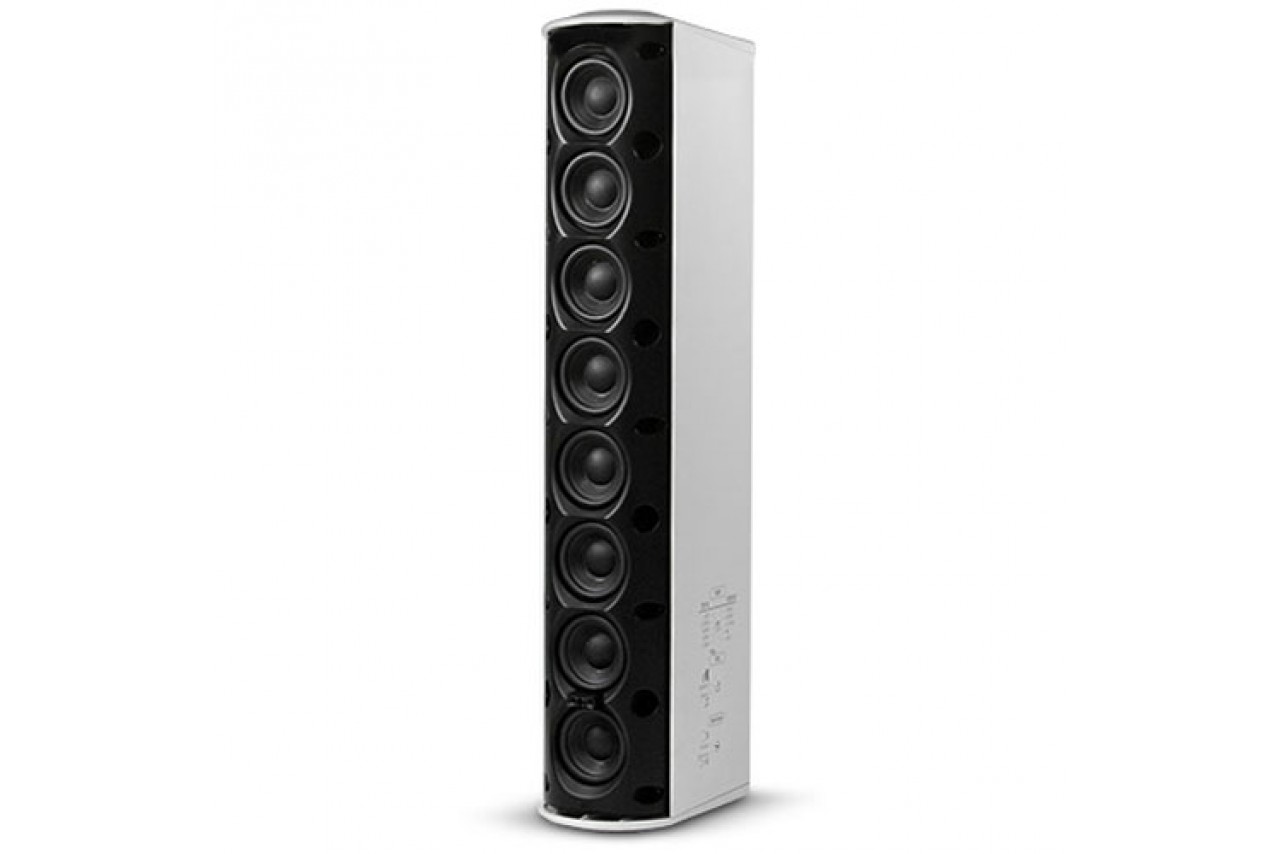

JBL CBT 50LA-1/WH Column Speaker – White | Weather-Resistant Line ArrayConstant Beamwidth Technology™ Line Array Column Loudspeaker with Eight 50 mm (2 in) Drivers. With an improved mounting bracket for enhanced aiming flexibility.The CBT 50LA-1,...
Availability: 2-3 Days
Constant Beamwidth Technology™ Line Array Column Loudspeaker with Eight 50 mm (2 in) Drivers. With an improved mounting bracket for enhanced aiming flexibility.
The CBT 50LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage loving that are typical of straight form-factor passive column speakers.
Experience precise, consistent sound with the JBL CBT 50LA-1/WH Column Speaker – the perfect choice for venues demanding clarity, coverage, and professional-grade performance.
Designed with Constant Beamwidth Technology™, this compact column speaker delivers crystal-clear speech and music, with minimal distortion and exceptional intelligibility. Whether you're installing in a church, school, conference hall, or outdoor area, the CBT 50LA-1 offers reliable, even coverage that reaches every corner of your space.
Featuring eight 2-inch full-range drivers, 150° horizontal coverage, and a narrow 20° vertical pattern, it reduces unwanted echoes and sound loss – especially in high-ceiling or reflective environments.
The white finish (WH variant) blends seamlessly with light-colored interiors and exteriors. Plus, with its weather-resistant IP55 rating (with optional cover), it’s built to perform indoors or out.
Don't settle for average speakers. Add the JBL CBT 50LA-1/WH to your cart today and experience the clarity and power of professional-grade audio.
| Specifications | |
|---|---|
| Component: | Eight 50 mm (2 in) Full-Range |
| Frequency Range: | 80 Hz – 20 kHz |
| Sensitivity (2.83V@ 1m): | 93 dB (speech mode, 2 kHz - 14 kHz) / 89 dB (music mode, 300 Hz - 18 kHz) |
| Coverage Pattern: | Vertical 20° (1.5 kHz - 16 kHz, ±10°) / Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°) |
| Nominal Impedance: | 8 ohms |
| Power Capacity (8 ohm setting): | 150W (600W peak), 2 hrs |
| 100 W (400W peak), 100 hrs | |
| Max SPL: | Speech mode: 115 dB cont ave (121 peak) |
| Music mode: 111 dB cont ave (117 peak) | |
| 70V/100V Transformer Taps: | 60W, 30W, 15W, (7.5W at 70V only), and 8? thru, via switch |
| Enclosure: | Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability: | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant |
| Colors: | White (-WH) |
| Insert Points: | Ten M6 insert points on back panel. |
| Packaging Info | |
|---|---|
| Dimensions (H x W x D): | 528 x 99 x 153 mm / (20.8 x 3.9 x 6.0 in) |
| Net Weight: | 4.1 kg (9.0 lb) |
| Included Accessories: | Swivel (pan) / tilt wall bracket |
| Optional Accessories: | MTC-PC2 terminal panel cover MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand |
