MXA902

INTEGRATED CONFERENCING CEILING ARRAY

Combined microphone, loudspeaker, and DSP with Single-zone Automatic Coverage™ technology provides clear audio capture and reproduction from one device.

REQUEST A DEMO

MXA902 Integrated Conferencing Ceiling Array

The first integrated ceiling array microphone and loudspeaker for AV conferencing in small & medium spaces. Includes an advanced array microphone and a wide-dispersion loudspeaker for natural sounding speech capture and reproduction. Single Zone Automatic Coverage™ technology captures audio from a 6 by 6-meter (20 by 20 foot) area while onboard IntelliMix® DSP delivers echo- and noise-free audio.

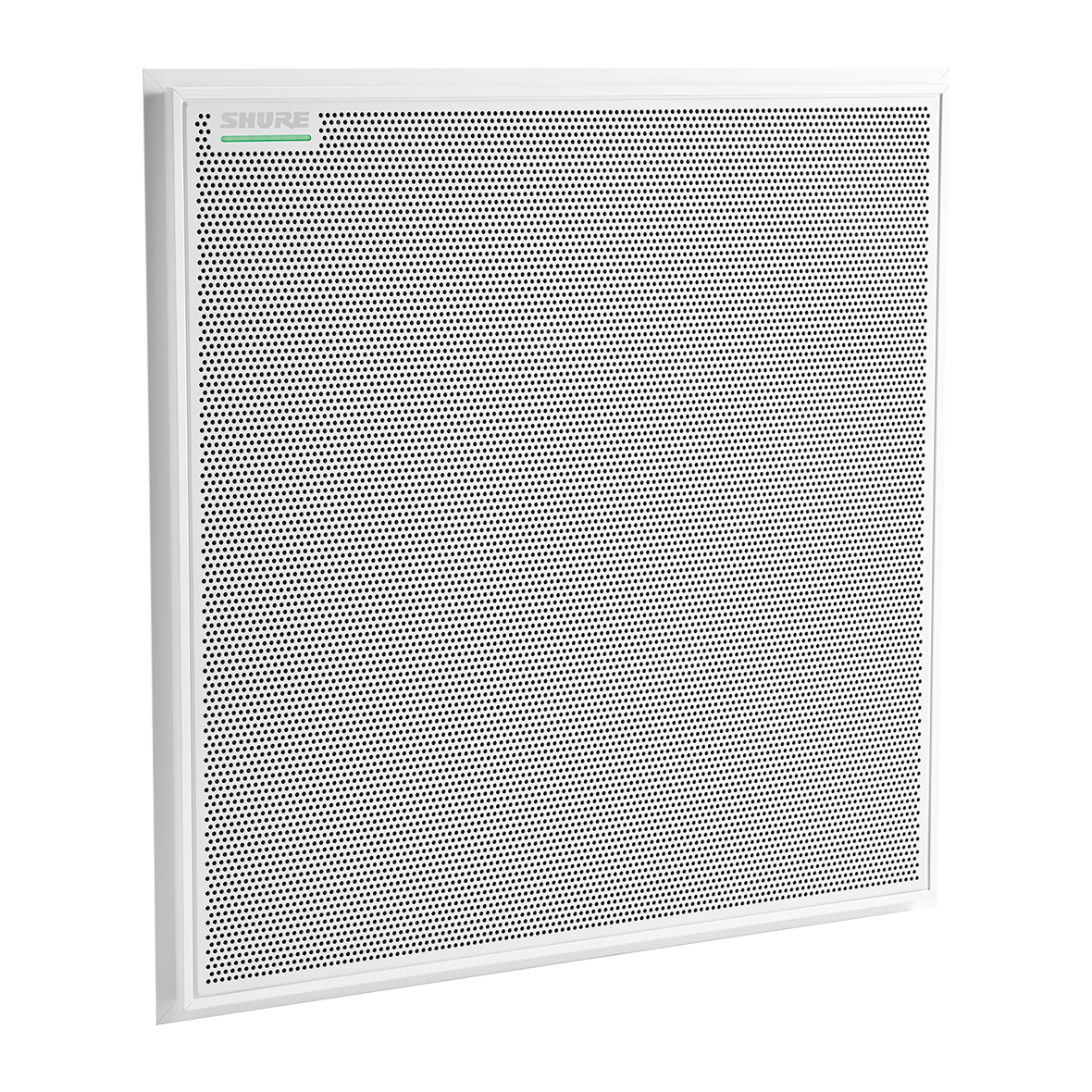

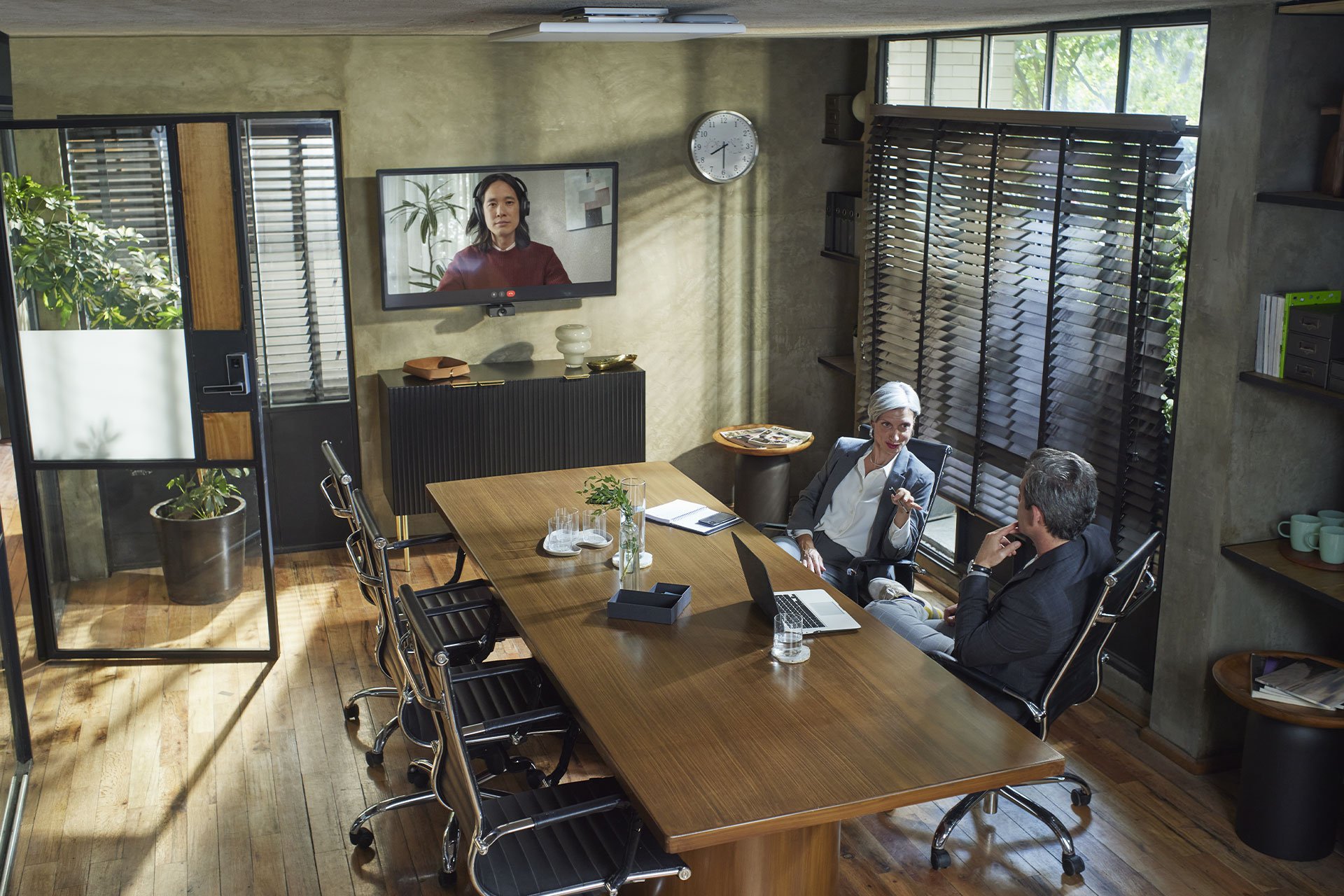

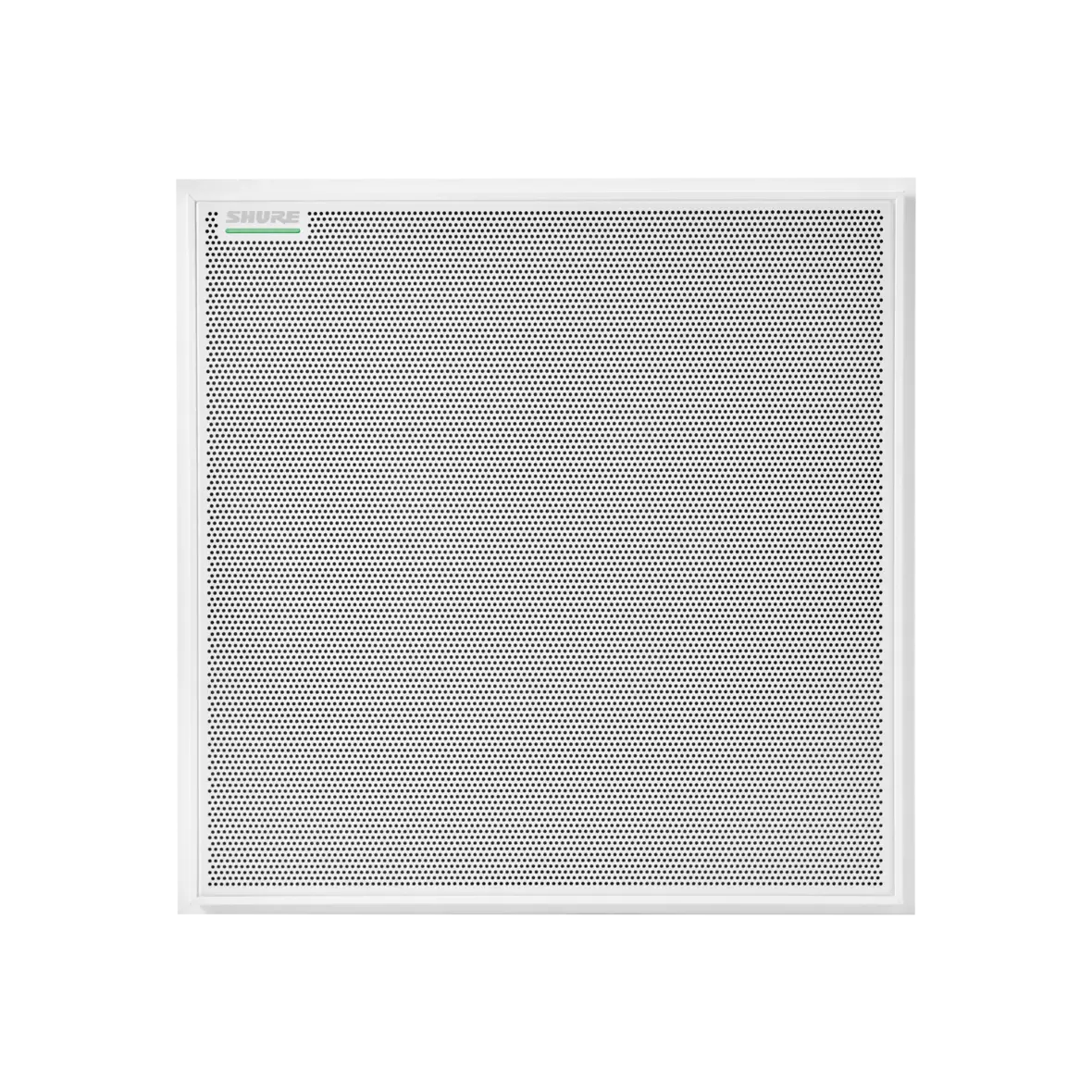

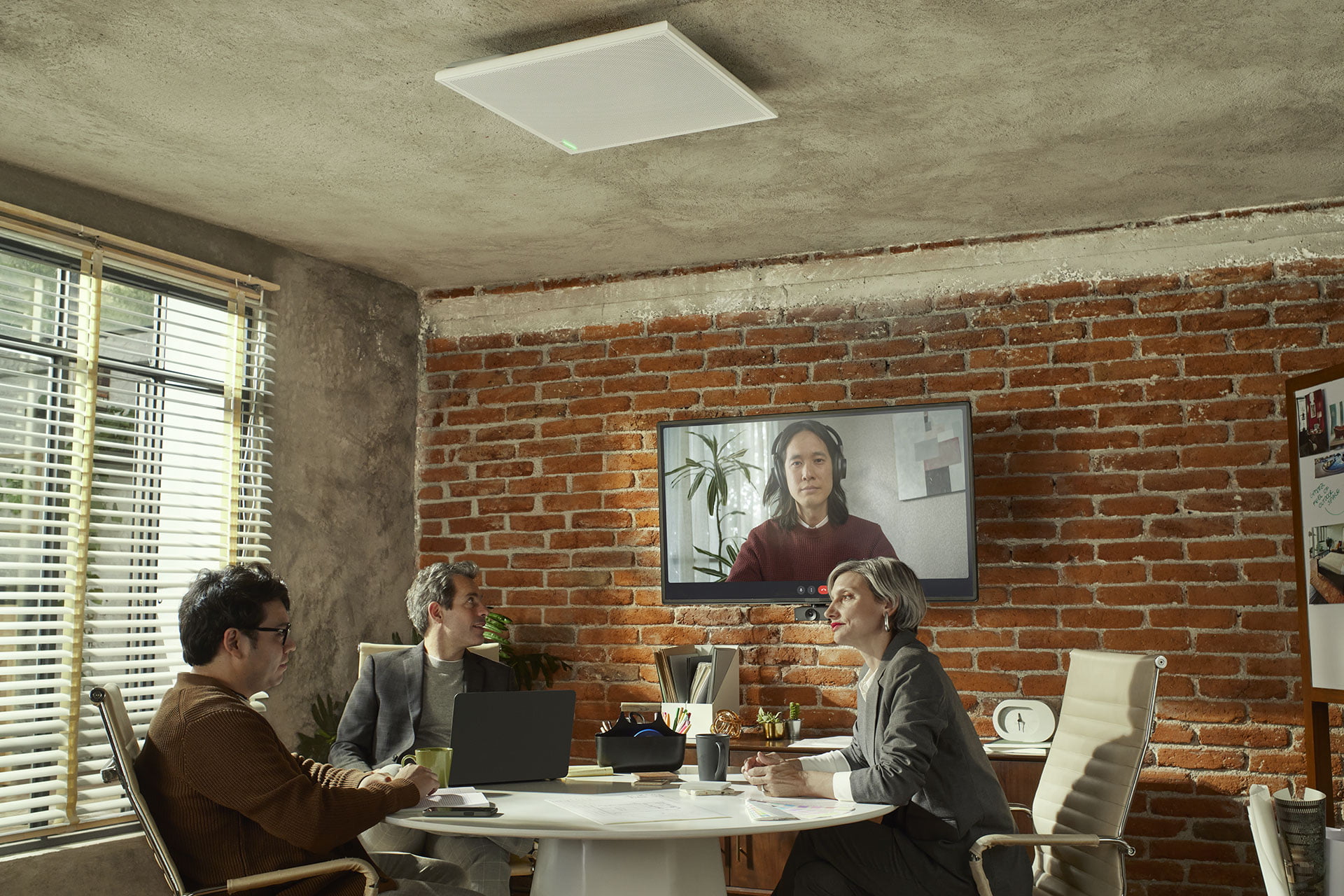

The 24", square, white MXA902 from Shure combines a microphone array and loudspeaker in one elegant solution—ready for ceiling installation in boardrooms, meeting spaces, and similar environments. The mic and speaker are designed to cover a 20 x 20' area right out of the box, and the unit requires only a single network connecting cable for power, control data, and encrypted audio.

The Fastest Way to Better Sound

Array microphone and loudspeaker in one unit for premium sound with minimal installation time.
Single Zone Automatic Coverage™ technology to capture audio from a 20 by 20 foot (6 by 6 meter) area out of the box.
Integrated 2.5-inch wide-dispersion loudspeaker for clear, intelligible speech reproduction.
Square form factor available in 2 ft or 60 cm sizes with paintable white finish.

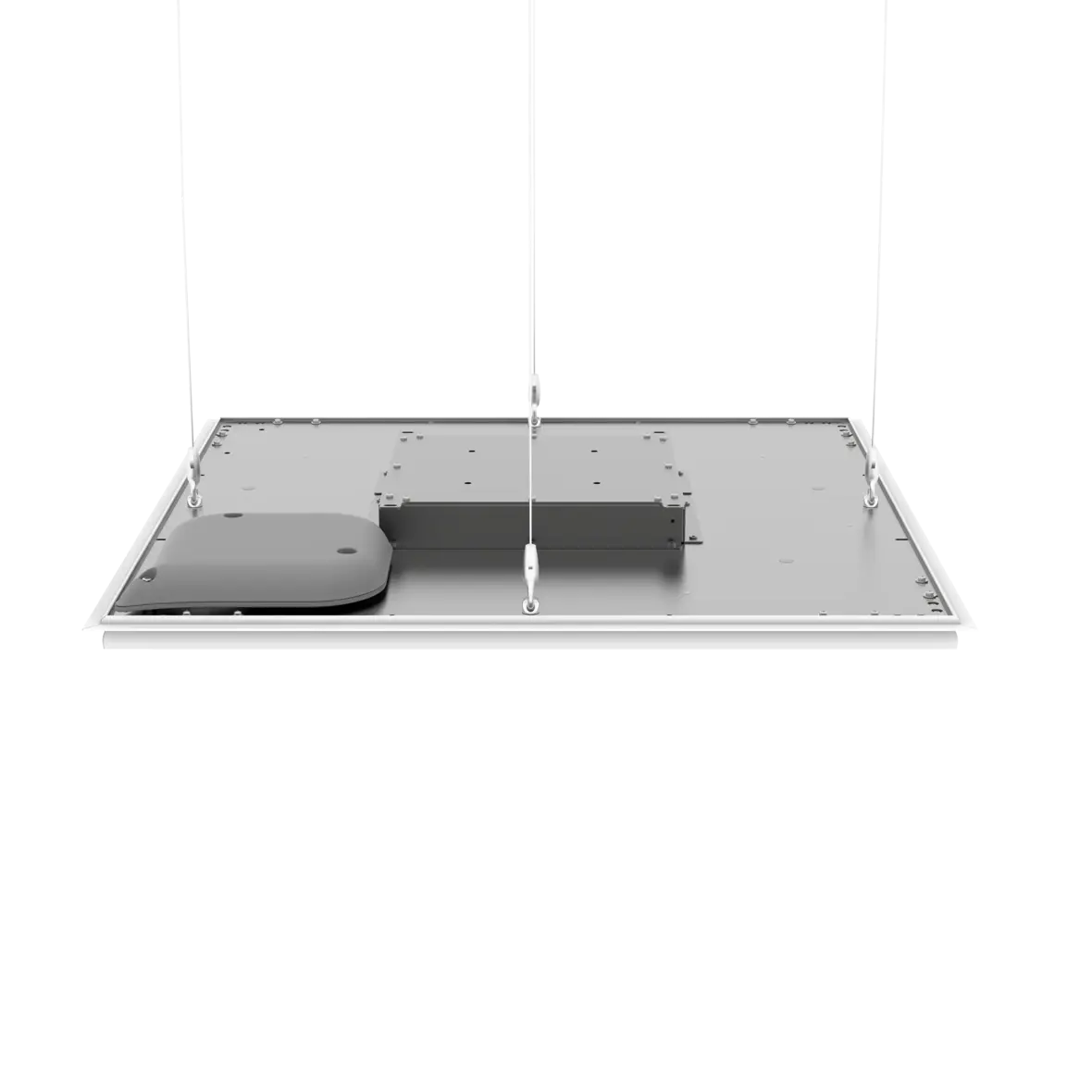

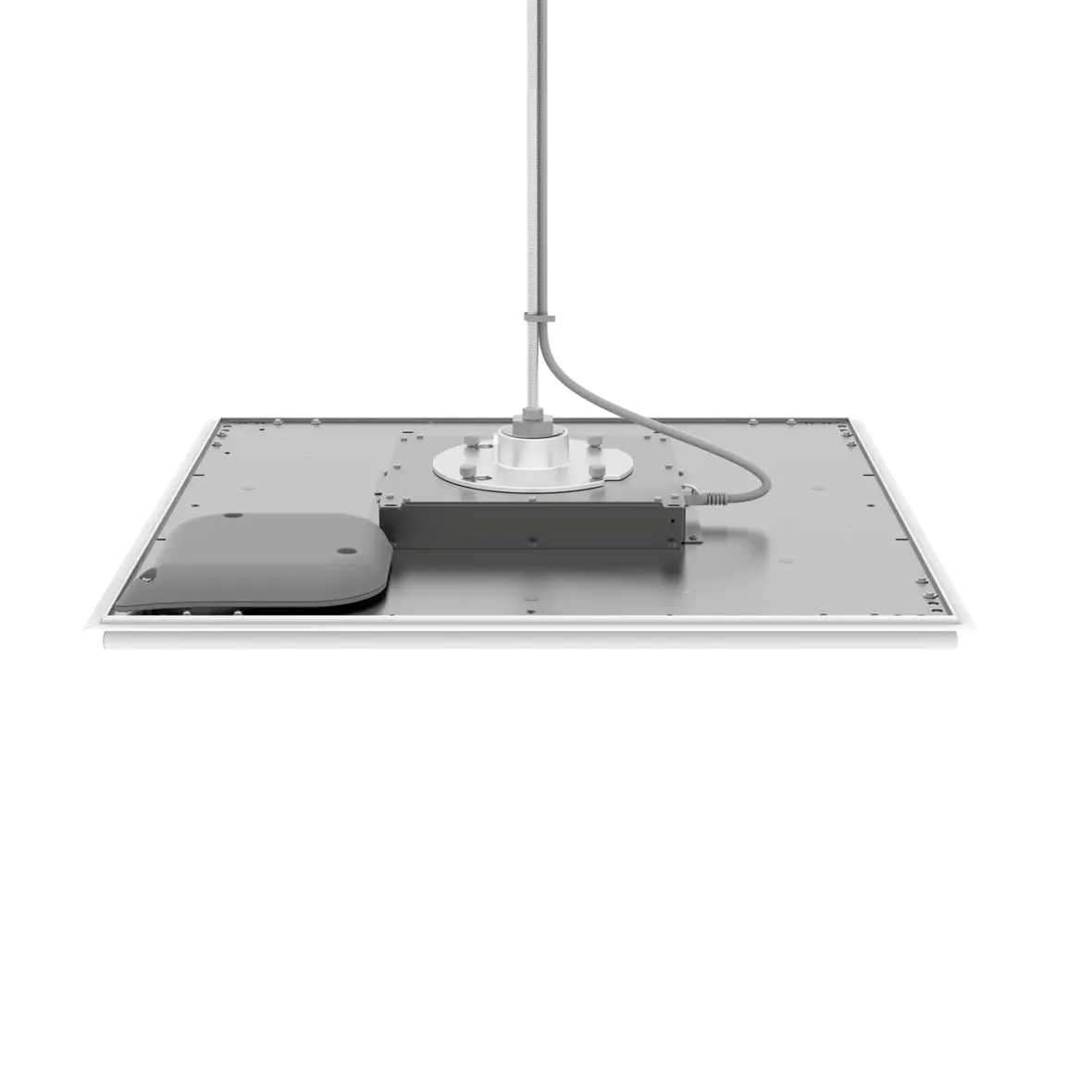

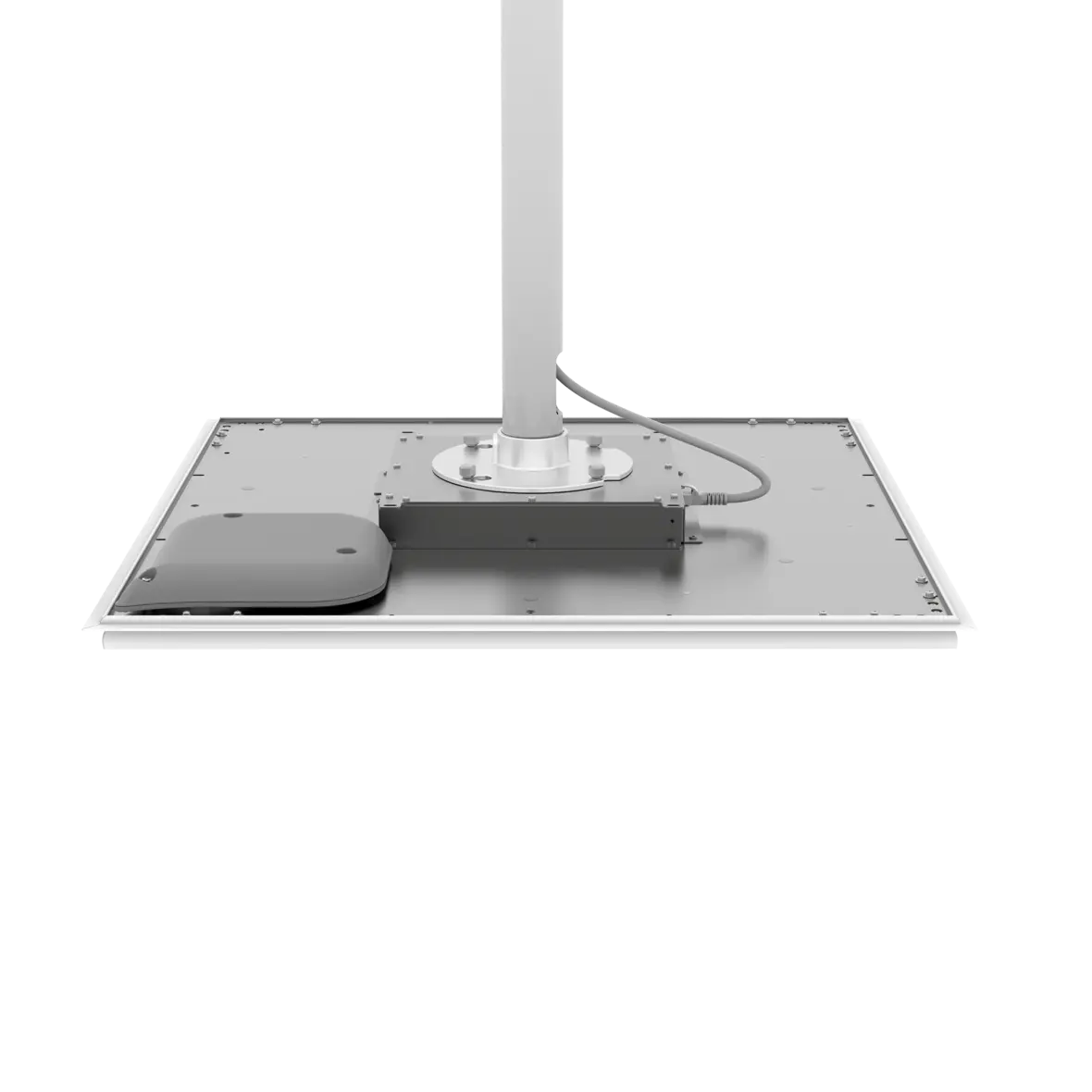

Versatile options for ceiling, pole, or wire rope suspension mounting.

in The Box

1 MXA902W-S array microphone with loudspeaker
1 Hardware kit includes:
8 Cable ties
3 Strain relief tabs
1 Rubber pad set

How It Works

An advanced array microphone, wide-dispersion loudspeaker and powerful signal processing combined into one unit for premium sound. Single Zone Automatic Coverage™ technology captures every talker in a 6 by 6-meter (20 by 20 foot)) area while avoiding conversations and noises from other areas. High-output loudspeaker is optimised for voice reproduction to ensure effortless collaboration. Onboard IntelliMix DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix.

Why It’s Better

A single device requires only one network cable, minimising installation time compared to separate components. An integrated ceiling device reduces clutter on tables and walls for a cleaner interior design. Next generation array architecture delivers enhanced low frequency directionality and the most natural speech quality. Unlike wall-mounted soundbar devices, a ceiling-mounted array mic and loudspeaker provide more consistent sound quality for every participant.

Quality That’s In The Details

Certified for use with Microsoft Teams, Zoom and compatible with popular collaboration tools. Square form factor available in 2 ft or 60 cm sizes with paintable white finish to meet the architectural needs of today’s meeting spaces. Audio, PoE+ power, and control signals connect via Dante/AES67 digital audio networking over a single cable. Shure Audio Encryption keeps meeting content secure between the MXA902 and other Microflex Ecosystem devices in the room. LED status bar with configurable colours and brightness. Command strings enable seamless integration with third-party room control systems.
